What Distinguishes THHN/THWN-2 from XHHW/XHHW-2?

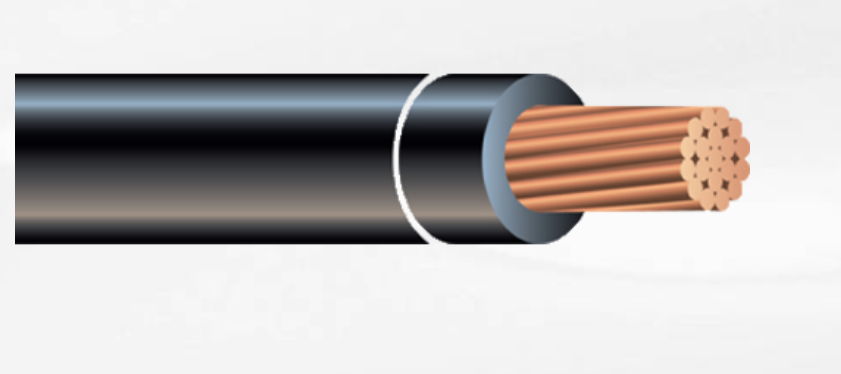

Understanding THHN/THWN-2 Wiring

THHN and THWN (Thermoplastic High Heat Nylon coated and Thermoplastic Heat and Water resistant Nylon coated respectively) cables are frequently utilized in construction for electrical wiring purposes as they are suitable for both dry and wet environments. These wires are specifically crafted to withstand conditions with THWN (Thermoplastic Heat and Water resistant Nylon coated offering better water resistance and higher temperature endurance than the standard THHN variety.The lightweight thermoplastic insulation of these wires makes them convenient to work with during installation. They find application in various settings including residential buildings, factory spaces, and commercial establishments due, to their adaptability.

Characteristics of XHHW/XHHW-2 Wiring

Single core cables are covered in Cross-linked Polyethylene (XLPE). This particular insulation offers heat resistance and durability against abrasions and moisture, as well as protection from high temperatures and sunlight exposure. In dry conditions alike XHHW/XHHW-2 wires are capable of withstanding temperatures up to 90°C at maximum for the conductor itself. Making them ideal for various wiring applications such as general purpose installations in air ducts or recognized pathways designated for services and electrical circuits, per the guidelines of the National Electrical Code.

Key Differences in Insulation Materials

Thermoplastic Insulation in THHN/THWN-2

The insulation material found in THHN and THWN wires is made of material which is known for being affordable and flexible during installation procedures; yet it may not withstand extreme temperatures or harsh conditions for extended periods of time due to its limited durability under high pressure or, in excessively moist environments.

Cross-linked Polyethylene Insulation in XHHW/XHHW-2

The XHHW/XHHW-2 wires are designed with a type of insulation called Cross-linked Polyethylene that improves their performance in different situations. This durable material offers protection against heat, moisture, oil, gas and wear and tear. Moreover Cross-linked Polyethylene retains its strength in high temperatures making it perfect, for settings where thermal stability is crucial.

Applications and Use Cases

Common Uses for THHN/THWN-2 Wires

THHN/THWN-2 cables are commonly used in construction projects for distributing power because they are cost effective and easy to install.They are frequently utilized in conduit setups to power lighting circuits well as branch circuits and control wiring.Their flexibility enables them to be employed in settings including residential properties like home electrical panels and commercial structures such, as office buildings.

Typical Applications of XHHW/XHHW-2 Wires

XHHW wire and XHHW-2 wire Type 2 cables are crafted for wiring purposes up to 600 volts and are ideal for industrial environments that demand dependable performance in harsh conditions.They are well suited for setups thanks to their resistance to sunlight damage.They find use in a variety of building projects such, as homes,businesses and industrial facilities.

Performance Factors to Consider

Temperature Ratings and Resistance Properties

Temperature ratings are important for selecting the wire for different settings. XHH W wires can handle up to 90°C in dry areas while THHN wires usually have lower temperature limits unless specified otherwise. The Cross-linked Polyethylene insulation of XHHW/XHHW provides thermal stability compared to the thermoplastic insulation, in THHN /THWN.

Moisture and Chemical Resistance Comparison

When it comes to handling moisture exposure over time XHHW/XHHW-2 wires have an edge over THHN and THWN cables due to the superior water repelling properties of their XLPE insulation layer. Type XHHW/XHHW-2 aluminum alloy conductors（AA-8000 series） meet ASTM B800/B801 standards demonstrating their ability to withstand challenges related to gas and oil exposure. As a result they are better suited, for environments exposed to chemicals or prolonged wet conditions.

Henan TDDL, a provider of cable manufacturing solutions provides top notch XHHW-2 Copper conductors that meet various industry requirements and comply with global standards such as UL Standard 44 (products compliant with ROHS). Their cables are designed for lasting durability requiring minimal maintenance, in the long run.

Professionals can make informed decisions tailored to project requirements by understanding the differences between THHN and THWN wiring options compared to XHHW/XHHW-2 Alongside their specific applications to ensure long term performance reliability.

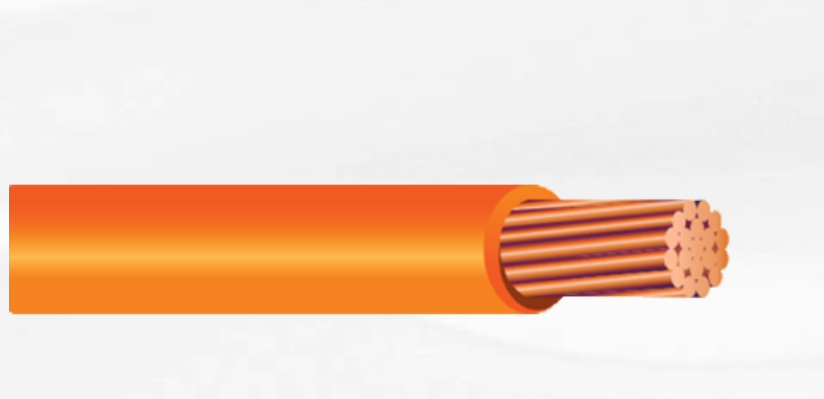

Electrical Conductors Copper vs. Aluminum

Electrical Conductors: Copper vs. Aluminum

The Role of Copper Conductors in Wiring Systems

Copper has been known for its reliability in wiring systems for a long time because of its great conductivity and durability qualities. For example, XHHW‐2 Copper conductor cables are made with linked polyethylene insulation which offers excellent thermal stability and protection against environmental elements like moisture and abrasions. These cables are built using annealed stranded copper following ASTM B3 and B8 standards to guarantee top notch reliability and efficiency in residential as well as industrial settings.

The use of copper conductors is highly valued for their capability to manage increased current levels while minimizing energy wastage—an attribute that makes them well-suited for crucial applications requiring consistent operation, like power grids and control circuits. Additionally cables featuring the XHHW-2 Copper Conductor designation are designed to withstand conductor temperatures up to 90°C in both dry environments in compliance with industry regulations such, as UL Standard 44.

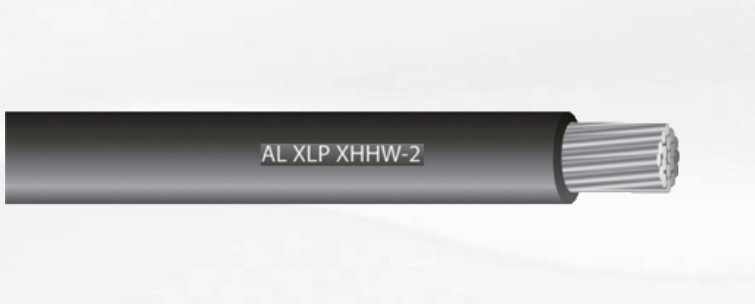

Aluminum Conductors and Their Applications

Aluminum wiring provides an option compared to copper wiring while still delivering satisfactory electrical capabilities for a wide range of uses. XHHW‐2 Aluminum conductor cables are made with AA‐8000 series aluminum alloy stranded design that boosts their durability and conductivity.They are also shielded with linked polyethylene that offers the same advantages as copper cables in terms of heat resistance and protection against environmental factors.
Aluminum wires are frequently utilized in projects that prioritize cost effectiveness.Cases in point include their application in above ground power lines,mains circuits and entry points, for services.The National Electrical Code mandates that XHHW-2 Aluminum Conductor wires can function at temperatures reaching 90°C in either arid circumstances making them well suited for a variety of settings.

Cost and Durability Considerations

Evaluating Costs Associated with Each Type

In terms of expenses comparison aluminum wires tend to be more cost effective than copper ones because of the cheaper raw aluminum materials used. This financial disparity can have an effect, in scenarios involving broad scale setups necessitating ample wiring installations. Nevertheless it's crucial to reflect on the lasting consequences of these savings.

Copper wires may be more expensive initially. They tend to provide greater value in the long run because of their superior conductivity and durability advantages compared to other materials like aluminum or steel wires. The improved efficiency of copper wiring can lead to utility expenses over time, thanks to reduced energy loss during transmission and distribution processes. Furthermore the sturdy nature of copper minimizes the risk of wear and tear under operating conditions, making it a reliable choice, for electrical systems.

Long-Term Durability and Maintenance Factors

When deciding between copper and aluminum conductors for an applications durability is key to consider. Coppers resistance to corrosion and ability to handle mechanical stress make it a great option for environments facing tough conditions.. For example. XHHW-2 Copper Conductor cables meet ROHS standards. Can withstand gas. Oil, Sunlight (sizes 8 AWG and above) ensuring long lasting performance, in difficult settings..

Aluminum wires are more prone to oxidation compared to copper ones; however they have shown improvements with the introduction of AA 8000 series alloys in modern XHHW-2 Aluminum Conductor cables. These upgrades help lessen the need for maintenance by tackling issues, like expansion and contraction that may cause loose connections over time.

FAQ

Q: What insulation materials are used in XHHW-2 Copper Conductor cables?

A; The XHHW-2 conductor wiring is covered with thermosetting Cross-linked Polyethylene that offers strong protection against heat, humidity, oil, and gas. And wear and tear. It also retains its structural stability in different environmental settings.

Q: What are the temperature ratings for XHHW-2 Copper Conductor cables?

A: The highest temperature that XHHW Copper Conductor cables can withstand is 90°C, whether they are used in dry conditions meeting industry requirements, like UL Standard 44.

Q: What is XHHW-2 Copper Conductor cable used for?

A: The XHHW copper conductor cable is intended for use in a variety of wiring applications up to 600 volts and is frequently employed in air ducts or approved pathways for services, in homes and businesses alike.

Contact Us

Henan TDDL. a top notch producer of premium cables (visit their website at tddlcable.com) provides a variety of products designed to meet the unique requirements of various industries.They focus on innovation to deliver solutions that adhere to global standards such as ASTM B3/B8 for copper wires and AA–8000 series alloys, for aluminum choices.

For details regarding our offerings or assistance, with any inquiries you may have about our products and services kindly contact us via our official website at https://www.tddlcable.com/.
