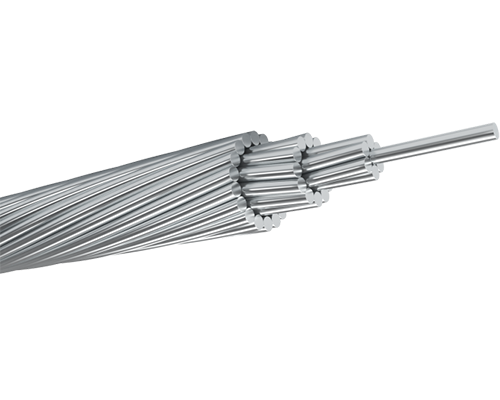

AAAC-All Aluminum Alloy Conductor (6201,6101,1120,AL59)

Application
AAAC is used as a bare overhead conductor for power transmission and distribution lines, on aerial circuits that require a larger mechanical resistance than AAC, and a better corrosion resistance than ACSR. The sag characteristics and the strength-to-weight ratio of AAAC is better than both AAC / ACSR.

Description
Concentric lay stranded Aluminium Alloy Conductors (AAAC) are made out of high strength Aluminium-Magnesium-Silicon Alloy.

Specification
● IEC 61089 Round Wire Concentric Lay Overhead Electrical Stranded Conductors
● ASTM B 399 Concentric-Lay-Stranded Aluminum-Alloy 6201-T81 Conductors.
● BS EN 50182 Conductors for Overhead Lines-Round Wire Concentric Lay stranded Conductors
● AS 1531 Conductors - Bare Overhead - Aluminum and Aluminum Alloy
● GB/T 1179 Round Wire Concentric Lay Overhead Electrical Stranded Conductors

High reliability

Super high pressure

Less maintenance

Technical Parameter

IEC 61089 ASTM B 399 BS EN 50182(Germany) BS EN 50182 AS 1531 GB/T 1179

AAAC/A2

Code Number	Area	No.of Wires	Diameter		Linear Mass	Rated Strength	D.C. Resistance
	Area		Wire	Cond.	Linear Mass	Rated Strength	D.C. Resistance
	mm²		mm	mm	kg/km	kN	Ω/km
16	18.4	7	1.83	5.49	50.4	5.43	1.7896
25	28.8	7	2.29	6.86	78.7	8.49	1.1453
40	46.0	7	2.89	8.68	125.9	13.58	0.7158
63	72.5	7	3.63	10.9	198.3	21.39	0.4545
100	115	19	2.78	13.9	316.3	33.95	0.2877
125	144	19	3.10	15.5	395.4	42.44	0.2302
160	184	19	3.51	17.6	506.1	54.32	0.1798
200	230	19	3.93	19.6	632.7	67.91	0.1439
250	288	19	4.39	22.0	790.8	84.88	0.1151
315	363	37	3.53	24.7	998.9	106.95	0.0916
400	460	37	3.98	27.9	1268.4	135.81	0.0721
450	518	37	4.22	29.6	1426.9	152.79	0.0641
500	575	37	4.45	31.2	1585.5	169.76	0.0577
560	645	61	3.67	33.0	1778.4	190.14	0.0516
630	725	61	3.89	35.0	2000.7	213.90	0.0458
710	817	61	4.13	37.2	2254.8	241.07	0.0407
800	921	61	4.38	39.5	2540.6	271.62	0.0361
900	1036	91	3.81	41.8	2861.1	305.58	0.0321
1000	1151	91	4.01	44.1	3179.0	339.53	0.0289
1120	1289	91	4.25	46.7	3560.5	380.27	0.0258
1250	1439	91	4.49	49.4	3973.7	424.41	0.0231

AAAC / A3

Code Number	Area	No.of Wires	Diameter		Linear Mass	Rated Strength	D.C. Resistance
	Area		Wire	Cond.	Linear Mass	Rated Strength	D.C. Resistance
	mm²		mm	mm	kg/km	kN	Ω/km
16	18.6	7	1.84	5.52	50.8	6.04	1.7896
25	29.0	7	2.30	6.90	79.5	9.44	1.1453
40	46.5	7	2.91	8.72	127.1	15.10	0.7158
63	73.2	7	3.65	10.9	200.2	23.06	0.4545
100	116	19	2.79	14.0	319.3	37.76	0.2877
125	145	19	3.12	15.6	399.2	47.20	0.2302
160	186	19	3.53	17.6	511.0	58.56	0.1798
200	232	19	3.95	19.7	638.7	73.20	0.1439
250	290	19	4.41	22.1	798.4	91.50	0.1151
315	366	37	3.55	24.8	1008.4	115.29	0.0916
400	465	37	4.00	28.0	1280.5	146.40	0.0721
450	523	37	4.24	29.7	1440.5	164.70	0.0641
500	581	37	4.47	31.3	1600.6	183.00	0.0577
560	651	61	3.69	33.2	1795.3	204.96	0.0516
630	732	61	3.91	35.2	2019.8	230.58	0.0458
710	825	61	4.15	37.3	2276.2	259.86	0.0407
800	930	61	4.40	39.6	2564.8	292.80	0.0361
900	1046	91	3.83	42.1	2888.3	329.40	0.0321
1000	1162	91	4.03	44.4	3209.3	366.00	0.0289
1120	1301	91	4.27	46.9	3594.4	409.92	0.0258

AAAC

Conductor Size		No. and Diameter	Overall Diameter	Mass	Rated Strength	Nominal DC Resistance at 20℃
AWG or MCM	mm²	mm	mm	kg/km	kN	Ω/km
6	13.2	7/1.55	4.65	36.20	4.18	2.5361
4	21.1	7/1.96	5.88	57.90	6.69	1.5860
2	33.5	7/2.47	7.41	92.00	10.6	0.99870
1/0	53.5	7/3.12	9.36	146.8	17.0	0.62592
2/0	67.3	7/3.50	10.50	184.8	20.4	0.49738
3/0	84.9	7/3.93	11.79	233.0	25.7	0.39450
4/0	107	7/4.42	13.26	294.7	32.5	0.31188
250	126	19/2.91	14.55	346.7	38.8	0.26509
300	152	19/3.19	15.95	416.7	46.6	0.22059
350	178	19/3.45	17.25	487.3	52.0	0.18860
400	203	19/3.69	18.45	557.5	59.5	0.16486
450	228	19/3.91	19.55	626.0	66.8	0.14683
500	253	19/4.12	20.60	695.0	74.2	0.13224
550	279	37/3.10	21.70	766.2	83.9	0.11995
600	303	37/3.23	22.61	831.9	91.0	0.11049
650	330	37/3.37	23.59	905.5	94.9	0.10150
700	354	37/3.49	24.43	971.2	101	0.09464
750	381	37/3.62	25.34	1045	109	0.08796
800	404	37/3.73	26.11	1109	116	0.08285
900	456	37/3.96	27.72	1250	131	0.07351
1000	508	37/4.18	29.26	1393	146	0.06597
1250	631	61/3.63	32.67	1732	179	0.05306
1500	759	61/3.98	35.82	2082	215	0.04414
1750	886	61/4.30	38.70	2431	251	0.03781

Code Name	Conductor Size		No. and Diameter	Overall Diameter	Mass	Rated Strength	Nominal DC Resistance at 20℃
	MCM	mm²	mm	mm	kg/km	kN	Ω/km
AKRON	30.58	15.5	7/1.68	5.04	42.58	4.92	2.159
ALTON	48.69	24.7	7/2.12	6.36	67.80	7.83	1.356
AMES	77.47	39.2	7/2.67	8.01	107.5	12.4	0.8547
AZUSA	123.3	62.4	7/3.37	10.11	171.3	18.9	0.5365
ANAHEIM	155.4	78.6	7/3.78	11.34	215.6	23.8	0.4264
AMHERST	195.7	99.3	7/4.25	12.75	272.5	30.0	0.3373
ALLIANCE	246.9	125	7/4.77	14.31	343.2	37.8	0.2678
BUTTE	312.8	159	19/3.26	16.30	435.1	46.5	0.2112
CANTON	394.5	200	19/3.66	18.30	548.5	58.6	0.1676
CAIRO	465.4	236	19/3.98	19.90	648.6	69.2	0.1417
DARIEN	559.5	284	19/4.36	21.80	778.3	83.1	0.1181
ELGIN	652.4	331	19/4.71	23.55	908.3	97.0	0.1012
FLINT	740.8	375	37/3.59	25.13	1028	107	0.08944
GREELEY	927.2	470	37/4.02	28.14	1289	135	0.07133
—	1077.4	547	61/3.38	30.42	1502	156	0.06120
—	1165.1	590	61/3.51	31.59	1620	167	0.05675
—	1259.6	638	61/3.65	32.85	1751	181	0.05248
—	1348.8	685	61/3.78	34.02	1878	194	0.04893
—	1439.2	729	61/3.90	35.10	1999	207	0.04597

AAAC

Code	Old Code	Area	No. of Wires	Diameter		Mass per Unit Length	Rated Strength	DC Resistance
		Area		Wire	Cond.	Mass per Unit Length	Rated Strength	DC Resistance
		mm²		mm	mm	kg/km	kN	Ω/km
16-AL3	16	15.9	7	1.70	5.10	43.4	4.69	2.0701
24-AL3	25	24.2	7	2.10	6.30	66.2	7.15	1.3566
34-AL3	35	34.4	7	2.50	7.50	93.8	10.14	0.9572
49-AL3	50	49.5	7	3.00	9.00	135.1	14.60	0.6647
48-AL3	50	48.3	19	1.80	9.00	132.7	14.26	0.6841
66-AL3	70	65.8	19	2.10	10.5	180.7	19.41	0.5026
93-AL3	95	93.3	19	2.50	12.5	256.0	27.51	0.3546
117-AL3	120	117.0	19	2.80	14.0	321.2	34.51	0.2827
147-AL3	150	147.1	37	2.25	15.8	405.3	43.40	0.2256
182-AL3	185	181.6	37	2.50	17.5	500.3	53.58	0.1827
243-AL3	240	242.5	61	2.25	20.3	670.3	71.55	0.1373
299-AL3	300	299.4	61	2.50	22.5	827.5	88.33	0.1112
400-AL3	400	400.1	61	2.89	26.0	1105.9	118.04	0.0832
500-AL3	500	499.8	61	3.23	29.1	1381.4	147.45	0.0666
626-AL3	625	626.2	91	2.96	32.6	1737.7	184.73	0.0534
802-AL3	800	802.1	91	3.35	36.9	2225.8	236.62	0.0417
1000-AL3	1000	999.7	91	3.74	41.1	2774.3	294.91	0.0334

Code	Old code	Area	No.of Wires	Diameter		Mass per Unit Length	Rated Strength	DC Resistance
		Area		Wire	Cond.	Mass per Unit Length	Rated Strength	DC Resistance
		mm²		mm	mm	kg/km	kN	Ω/km
19-AL3	BOX	18.8	7	1.85	5.55	51.4	5.55	1.7480
24-AL3	ACACIA	23.8	7	2.08	6.24	64.9	7.02	1.3828
30-AL3	ALMOND	30.1	7	2.34	7.02	82.2	8.88	1.0926
35-AL3	CEDAR	35.5	7	2.54	7.62	96.8	10.46	0.9273
42-AL3	DEODAR	42.2	7	2.77	8.31	115.2	12.44	0.7797
48-AL3	FIR	47.8	7	2.95	8.85	130.6	14.11	0.6875
60-AL3	HAZEL	59.9	7	3.30	9.90	163.4	17.66	0.5494
72-AL3	PINE	71.6	7	3.61	10.8	195.6	21.14	0.4591
84-AL3	HOLLY	84.1	7	3.91	11.7	229.5	24.79	0.3913
90-AL3	WILLOW	89.7	7	4.04	12.1	245.0	26.47	0.3665
119-AL3	OAK	118.9	7	4.65	14.0	324.5	35.07	0.2767
151-AL3	MULBERRY	150.9	19	3.18	15.9	414.3	44.52	0.2192
181-AL3	ASH	180.7	19	3.48	17.4	496.1	53.31	0.1830
211-AL3	ELM	211.0	19	3.76	18.8	579.2	62.24	0.1568
239-AL3	POPLAR	239.4	37	2.87	20.1	659.4	70.61	0.1387
303-AL3	SYCAMORE	303.2	37	3.23	22.6	835.2	89.40	0.1095
362-AL3	UPAS	362.1	37	3.53	24.7	997.5	106.82	0.0917
479-AL3	YEW	479.0	37	4.06	28.4	1319.6	141.31	0.0693
498-AL3	TOTARA	498.1	37	4.14	29.0	1372.1	146.93	0.0666
587-AL3	RUBUS	586.9	61	3.50	31.5	1622.0	173.13	0.0567
659-AL3	SORBUS	659.4	61	3.71	33.4	1822.5	194.53	0.0505
821-AL3	ARAUCARIA	821.1	61	4.14	37.3	2269.4	242.24	0.0406
996-AL3	REDWOOD	996.2	61	4.56	41.0	2753.2	293.88	0.0334

AAAC/1120

Code Name	Stranding and Wire Diameter	Approx. Overall Diameter	Cross- sectional Area	Approx. Mass	Calculated Breaking Load (CBL)	Equiv. Aluminium Area	D.C. Resistance at 20℃
Code Name	mm	mm	mm²	kg/km	KN	mm²	Ω/km
Chlorine	7/2.50	7.50	34.36	94.3	8.18	32.8	0.864
Chromium	7/2.75	8.25	41.58	113	9.91	39.7	0.713
Fluorine	7/3.00	9.0	49.48	135	11.8	47.2	0.599
Helium	7/3.75	11.3	77.28	211	17.6	73.7	0.383
Hydrogen	7/4.50	13.5	111.3	304	24.3	106	0.266
lodine	7/4.75	14.3	124.0	339	27.1	118	0.239
Krypton	19/3.25	16.3	157.6	433	37.4	150	0.189
Lutetium	19/3.50	17.5	182.8	503	41.7	173	0.163
Neon	19/3.75	18.8	209.8	576	47.8	199	0.142
Nitrogen	37/3.00	21.0	261.6	721	62.2	248	0.114
Nobelium	37/3.25	22.8	307.0	845	72.8	291	0.0973
Oxygen	19/4.75	23.8	336.7	924	73.6	320	0.0884
Phosphorus	37/3.75	26.3	408.5	1120	93.1	387	0.0731
Selenium	61/3.25	29.3	506.1	1400	114	478	0.0592
Silicon	61/3.50	31.5	586.9	1620	127	555	0.0511
Sulfur	61/3.75	33.8	673.4	1860	145	636	0.0444

AAAC/6201

Code Name	Stranding and Wire Diameter	Approx. Overall Diameter	Cross- Sectional Area	Approx. Mass	Calculated Breaking Load (CBL)	Equiv. Aluminium Area	D.C. Resistance at 20℃
Code Name	mm	mm	mm²	kg/km	KN	mm²	Ω/km
Diamond	7/2.50	7.50	34.36	94.3	9.64	29.3	0.967
Dolomite	7/2.75	8.25	41.58	113	11.6	35.4	0.799
Emerald	7/3.00	9.0	49.48	135	13.9	42.2	0.671
Garnet	7/3.75	11.3	77.28	211	21.7	65.8	0.430
Jade	7/4.50	13.5	111.3	304	31.2	94.8	0.298
Jasper	7/4.75	14.3	124.0	339	34.8	106	0.268
Opal	19/3.25	16.3	157.6	433	44.2	134	0.212
Patronite	19/3.50	17.5	182.8	503	51.3	155	0.183
Pearl	19/3.75	18.8	209.8	576	58.8	178	0.159
Ruby	37/3.00	21.0	261.6	721	73.5	221	0.128
Ruthenium	37/3.25	22.8	307.0	845	86.1	260	0.109
Rutile	19/4.75	23.8	336.7	924	94.4	285	0.0991
Sapphire	37/3.75	26.3	408.5	1120	115	345	0.0819
Spinel	61/3.25	29.3	506.1	1400	135	427	0.0662
Tantalum	61/3.50	31.5	586.9	1620	156	495	0.0572
Topaz	61/3.75	33.8	673.4	1860	179	568	0.0498

AAAC(JLHA1，JLHA2)

Code Number	Area	No. of Wires	Diameter		Linear Mass	Rated strength		D.C. Resistance at 20℃
	Area		Wire	Cond.	Linear Mass	JLHA1	JLHA2	JLHA1	JLHA2
	mm²		mm		kg/km	kN		Ω/km
16	16.1	7	1.71	5.13	44.0	5.22	4.74	2.0695	2.0500
20	18.4	7	1.83	5.49	50.4	5.98	5.43	1.8070	1.7900
25	24.9	7	2.13	6.39	68.3	8.11	7.36	1.3339	1.3213
30	28.8	7	2.29	6.87	79.0	9.37	8.51	1.1540	1.1431
35	34.9	7	2.52	7.56	95.6	11.35	10.30	0.9529	0.9439
45	45.9	7	2.89	8.67	125.7	14.92	13.55	0.7246	0.7177
50	50.1	7	3.02	9.06	137.3	16.30	14.79	0.6635	0.6573
70	70.1	7	3.57	10.7	191.9	22.07	20.67	0.4748	0.4703
75	72.4	7	3.63	10.9	198.4	22.82	21.37	0.4593	0.4549
95	95.1	7	4.16	12.5	260.5	29.97	28.07	0.3497	0.3464
120	115	19	2.78	13.9	317.3	37.48	34.02	0.2899	0.2871
145	143	19	3.10	15.5	294.6	46.61	42.30	0.2331	0.2309
150	150	19	3.17	15.9	412.6	48.74	44.24	0.2229	0.2208
185	184	19	3.51	17.6	505.9	57.91	54.24	0.1818	0.1801
210	210	19	3.75	18.8	577.4	66.10	61.91	0.1593	0.1578
230	230	19	3.93	19.7	634.2	72.60	67.99	0.1451	0.1437
240	240	19	4.01	20.1	660.3	75.59	70.79	0.1393	0.1380
300	299	37	3.21	22.5	825.9	97.32	88.33	0.1119	0.1109
360	362	37	3.53	24.7	998.8	114.1	106.8	0.0925	0.0917
400	400	37	3.71	26.0	1103.2	126.0	118.0	0.0838	0.0830
465	460	37	3.98	27.9	1269.6	145.0	135.8	0.0728	0.0721
500	500	37	4.15	29.1	1380.4	157.7	147.6	0.0670	0.0663
520	518	37	4.22	29.5	1427.4	163.0	152.7	0.0648	0.0641
580	575	37	4.45	31.2	1587.2	181.3	169.8	0.0582	0.0577
630	631	61	3.63	32.7	1743.8	198.9	186.2	0.0532	0.0527

AAAC(JLHA1, JLHA2)

Code Number	Area	No. of Wires	Diameter			Linear Mass	Rated strength			D.C. Resistance at 20℃
			Wire	Cond.			JLHA1		JLHA2	JLHA1	JLHA2
	mm²		mm			kg/km	kN			Ω/km
650	645	61	3.67		33.0	1782.4	203.3	190.4		0.0520		0.0515
720	725	61	3.89		35.0	2002.5	228.4	213.9		0.0463		0.0459
800	801	61	4.09		36.8	2213.7	252.5	236.4		0.0419		0.0415
825	817	61	4.13		37.2	2257.2	257.4	241.1		0.0411		0.0407
930	919	61	4.38		39.4	2538.8	289.5	271.1		0.0365		0.0362
1000	1001	61	4.57		41.1	2763.8	315.2	295.2		0.0335		0.0332
1050	1037	91	3.81		41.9	2868.8	310.5	290.8		0.0324		0.0321
1150	1161	91	4.03		44.3	3209.7	347.4	325.3		0.0289		0.0287
1300	1291	91	4.25		46.8	3569.7	386.3	361.8		0.0260		0.0258
1450	1441	91	4.49		49.4	3984.2	431.2	403.8		0.0233		0.0231

AAAC(JLHA3，JLHA4)

Code Number	Area	No. of Wires	Diameter		Linear Mass	Rated strength		D.C. Resistance at 20℃
	Area		Wire	Cond.	Linear Mass	JLHA3	JLHA4	JLHA3	JLHA4
	mm²		mm		kg/km	kN		Ω/km
25	24.9	7	2.13	6.39	68.3	6.24	7.23	1.1971	1.2285
35	34.4	7	2.50	7.50	94.1	8.59	9.96	0.8689	0.8918
40	40.1	7	2.70	8.10	109.8	10.02	11.62	0.7450	0.7646
50	49.5	7	3.00	9.00	135.5	11.88	13.61	0.6034	0.6193
70	71.3	7	3.60	10.8	195.1	17.10	18.88	0.4191	0.4301
95	95.1	7	4.16	12.5	260.5	21.88	24.26	0.3138	0.3221
100	100	19	2.59	13.0	275.4	25.03	29.03	0.2997	0.3076
120	121	19	2.85	14.3	333.5	30.30	35.15	0.2475	0.2540
125	125	19	2.89	14.5	343.0	31.16	36.14	0.2407	0.2471
150	148	19	3.15	15.8	407.4	35.54	40.72	0.2026	0.2080
185	183	19	3.50	17.5	503.0	43.87	48.44	0.1641	0.1684
200	200	19	3.66	18.3	550.0	47.98	52.97	0.1501	0.1540
210	210	19	3.75	18.8	577.4	50.36	55.61	0.1430	0.1467
240	239	19	4.00	20.0	657.0	54.92	60.88	0.1257	0.1290
250	250	19	4.09	20.5	686.9	57.41	63.65	0.1202	0.1234
275	276	37	3.08	21.6	760.3	66.16	75.81	0.1091	0.1120
280	279	37	3.10	21.7	770.2	67.02	76.80	0.1077	0.1105
300	298	37	3.20	22.4	820.7	71.42	81.83	0.1011	0.1037
315	315	37	3.29	23.0	867.6	75.49	86.50	0.0956	0.0981
335	336	37	3.40	23.8	926.5	80.62	92.38	0.0895	0.0919
340	340	37	3.42	23.9	937.5	81.57	93.47	0.0885	0.0908
400	400	37	3.71	26.0	1103.2	96.00	106.0	0.0752	0.0772
425	426	37	3.83	26.8	1175.7	102.3	113.0	0.0705	0.0724
450	451	37	3.94	27.6	1244.2	108.3	119.5	0.0667	0.0684
500	503	37	4.16	29.1	1387.1	115.7	128.2	0.0598	0.0614
530	531	61	3.33	30.0	1467.4	127.5	146.1	0.0567	0.0582

AAAC(JLHA3，JLHA4)

Code Number	Area	No. of Wires	Diameter		Linear Mass	Rated strength		D.C. Resistance at 20℃
	Area		Wire	Cond.	Linear Mass	JLHA3	JLHA4	JLHA3	JLHA4
	mm²		mm		kg/km	kN		Ω/km
560	560	37	4.39	30.7	1544.7	128.8	142.8	0.0537	0.0551
630	631	61	3.63	32.7	1743.8	151.5	167.3	0.0477	0.0490
675	674	61	3.75	33.8	1861.0	161.7	178.5	0.0447	0.0459
710	710	61	3.85	34.7	1961.5	170.4	188.2	0.0424	0.0435
775	774	91	3.29	36.2	2139.2	176.4	202.1	0.0390	0.0400
800	801	61	4.09	36.8	2213.7	184.3	204.4	0.0376	0.0386
870	871	91	3.49	38.4	2407.2	198.5	227.4	0.0346	0.0355
900	898	61	4.33	39.0	2481.1	206.6	229.1	0.0335	0.0344
940	937	91	3.62	39.8	2589.8	213.5	235.8	0.0322	0.0330
975	973	91	3.69	40.6	2691.0	221.9	245.0	0.0310	0.0318
1000	1001	61	4.57	41.1	2763.8	230.1	255.1	0.0301	0.0309
1080	1082	91	3.89	42.8	2990.6	246.6	272.3	0.0279	0.0286
1120	1121	91	3.96	43.6	3099.2	255.5	282.2	0.0269	0.0276
1215	1213	91	4.12	45.3	3354.7	265.1	293.9	0.0249	0.0255
1250	1249	91	4.18	46.0	3453.1	272.9	302.5	0.0241	0.0248
1350	1352	91	4.35	47.9	3739.7	295.5	327.6	0.0223	0.0229
1400	1403	91	4.43	48.7	3878.5	306.5	339.8	0.0215	0.0221
1500	1499	91	4.58	50.4	4145.6	327.6	363.2	0.0201	0.0206
1645	1647	91	4.80	52.8	4553.4	359.8	398.9	0.0183	0.0188

For more product details, please download our PDF files.

PDF Download

Online message

AAAC-All Aluminum Alloy Conductor (6201)
