NYSY (KVVP2)

Application
This product is applicable to AC rated voltage U0/ U is the control cable for fixed laying in control, monitoring circuit and protection circuit of (U0/U) 0.6/1kV and below.

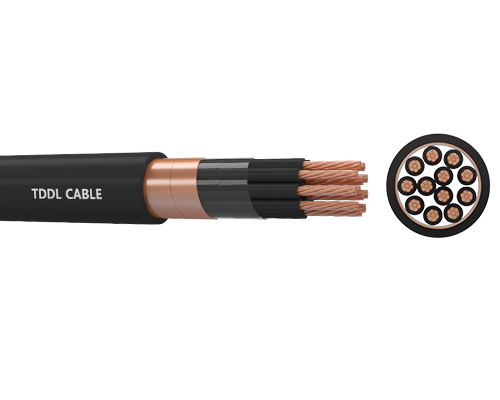

Construction
● Conductor: Conductor: Copper, class 1, 2, or 5, solid，stranded round or soft conductor
● Insulation: Polyvinyl chloride PVC
● Filler: Non-hygroscopic material
● Binder: Non-hygroscopic material
● Metal shield: copper tape
● Outer sheath: Polyvinyl chloride PVC

Chaircteritics
Good electrical and mechanical properties. Resistance to abrasion, moisture and sunlight. Adequate resistance to oil and abrasion.

Specification
IEC 60228 Conductors of Insulate Cables
IEC 60502-1 Power Cables with Extruded Insulation and Their Accessories for Rated Voltages from 1kV(Um=1.2kV) up to 30kV(Um=36kV) - Part 1: Cables for Rated Voltages of 1kV (Um=1.2kV) and 3kV(Um=3.6kV)

High reliability

Super high pressure

Less maintenance

Technical Parameter

IEC 60502-1

No. of Cores and Nominal Cross Section	Conductor Type	Nominal Insulation Thickness	Nominal Copper Tape Thickness	Nominal Sheath Thickness	Approx. Overall Diameter	Approx. Weight	Max. D.C. Resistance of Conductor at 20℃
No. × mm²		mm	mm	mm	mm	kg/km	Ω/km
2×0.5	2	0.6	0.2	1.8	10.9	173	36.0
2×0.75	2	0.6	0.2	1.8	11.3	193	24.5
2×1	2	0.6	0.2	1.8	11.7	206	18.1
2×1.5	2	0.8	0.2	1.8	13.1	256	12.1
2×2.5	2	0.8	0.2	1.8	13.9	292	7.41
2×4	2	1.0	0.2	1.8	15.8	375	4.61
2×6	2	1.0	0.2	1.8	16.9	436	3.08
2×10	2	1.0	0.2	1.8	18.7	576	1.83
3×0.5	2	0.6	0.2	1.8	11.2	191	36.0
3×0.75	2	0.6	0.2	1.8	11.7	217	24.5
3×1	2	0.6	0.2	1.8	12.1	234	18.1
3×1.5	2	0.8	0.2	1.8	13.6	285	12.1
3×2.5	2	0.8	0.2	1.8	14.5	334	7.41
3×4	2	1.0	0.2	1.8	16.5	439	4.61
3×6	2	1.0	0.2	1.8	17.7	528	3.08
3×10	2	1.0	0.2	1.8	19.6	709	1.83
4×0.5	2	0.6	0.2	1.8	11.8	206	36.0
4×0.75	2	0.6	0.2	1.8	12.3	228	24.5
4×1	2	0.6	0.2	1.8	12.7	259	18.1
4×1.5	2	0.8	0.2	1.8	14.4	332	12.1
4×2.5	2	0.8	0.2	1.8	15.4	394	7.41
4×4	2	1.0	0.2	1.8	17.7	525	4.61
4×6	2	1.0	0.2	1.8	19.0	642	3.08
4×10	2	1.0	0.2	1.8	21.2	888	1.83
5×0.5	2	0.6	0.2	1.8	12.4	227	36.0
5×0.75	2	0.6	0.2	1.8	12.9	266	24.5
5×1	2	0.6	0.2	1.8	13.4	291	18.1
5×1.5	2	0.8	0.2	1.8	15.3	372	12.1
5×2.5	2	0.8	0.2	1.8	16.4	451	7.41
5×4	2	1.0	0.2	1.8	19.0	609	4.61
5×6	2	1.0	0.2	1.8	20.4	738	3.08
5×10	2	1.0	0.2	1.8	22.9	1042	1.83
6×0.5	2	0.6	0.2	1.8	13.0	248	36.0
6×0.75	2	0.6	0.2	1.8	13.6	279	24.5

No. of Cores and Nominal Cross Section	Conductor Type	Nominal Insulation Thickness	Nominal Copper Tape Thickness	Nominal Sheath Thickness	Approx. Overall Diameter	Approx. Weight	Max. D.C. Resistance of Conductor at 20℃
No. × mm²		mm	mm	mm	mm	kg/km	Ω/km
6×1	2	0.6	0.2	1.8	14.2	308	18.1
6×1.5	2	0.8	0.2	1.8	16.3	403	12.1
6×2.5	2	0.8	0.2	1.8	17.5	489	7.41
6×4	2	1.0	0.2	1.8	20.4	668	4.61
6×6	2	1.0	0.2	1.8	22.0	829	3.08
6×10	2	1.0	0.2	1.8	24.7	1133	1.83
7×0.5	2	0.6	0.2	1.8	13.0	255	36.0
7×0.75	2	0.6	0.2	1.8	13.6	288	24.5
7×1	2	0.6	0.2	1.8	14.2	320	18.1
7×1.5	2	0.8	0.2	1.8	16.3	423	12.1
7×2.5	2	0.8	0.2	1.8	17.5	519	7.41
7×4	2	1.0	0.2	1.8	20.4	717	4.61
7×6	2	1.0	0.2	1.8	22.0	889	3.08
7×10	2	1.0	0.2	1.8	24.7	1227	1.83
8×0.5	2	0.6	0.2	1.8	13.9	285	36.0
8×0.75	2	0.6	0.2	1.8	14.7	324	24.5
8×1	2	0.6	0.2	1.8	15.3	361	18.1
8×1.5	2	0.8	0.2	1.8	17.7	479	12.1
8×2.5	2	0.8	0.2	1.8	19.2	590	7.41
8×4	2	1.0	0.2	1.8	22.4	819	4.61
8×6	2	1.0	0.2	1.8	24.3	1016	3.08
8×10	2	1.0	0.2	1.8	27.4	1409	1.83
9×0.5	2	0.6	0.2	1.8	14.7	312	36.0
9×0.75	2	0.6	0.2	1.8	15.5	357	24.5
9×1	2	0.6	0.2	1.8	16.2	398	18.1
9×1.5	2	0.8	0.2	1.8	18.8	529	12.1
9×2.5	2	0.8	0.2	1.8	20.4	656	7.41
9×4	2	1.0	0.2	1.8	24.0	912	4.61
9×6	2	1.0	0.2	1.8	26.0	1139	3.08
9×10	2	1.0	0.2	1.9	29.7	1597	1.83
10×0.5	2	0.6	0.2	1.8	15.1	329	36.0
10×0.75	2	0.6	0.2	1.8	15.9	376	24.5
10×1	2	0.6	0.2	1.8	16.7	420	18.1
10×1.5	2	0.8	0.2	1.8	19.5	563	12.1
10×2.5	2	0.8	0.2	1.8	21.1	700	7.41

No. of Cores and Nominal Cross Section	Conductor Type	Nominal Insulation Thickness	Nominal Copper Tape Thickness	Nominal Sheath Thickness	Approx. Overall Diameter	Approx. Weight	Max. D.C. Resistance of Conductor at 20℃
No. × mm²		mm	mm	mm	mm	kg/km	Ω/km
10×4	2	1.0	0.2	1.8	24.9	979	4.61
10×6	2	1.0	0.2	1.8	27.1	1226	3.08
10×10	2	1.0	0.2	1.9	30.9	1721	1.83
12×0.5	2	0.6	0.2	1.8	15.4	348	36.0
12×0.75	2	0.6	0.2	1.8	16.3	402	24.5
12×1	2	0.6	0.2	1.8	17.1	453	18.1
12×1.5	2	0.8	0.2	1.8	20.0	615	12.1
12×2.5	2	0.8	0.2	1.8	21.7	772	7.41
12×4	2	1.0	0.2	1.8	25.6	1093	4.61
12×6	2	1.0	0.2	1.8	27.9	1376	3.08
14×0.5	2	0.6	0.2	1.8	16.0	377	36.0
14×0.75	2	0.6	0.2	1.8	16.9	437	24.5
14×1	2	0.6	0.2	1.8	17.7	495	18.1
14×1.5	2	0.8	0.2	1.8	20.8	677	12.1
14×2.5	2	0.8	0.2	1.8	22.6	857	7.41
14×4	2	1.0	0.2	1.8	26.8	1223	4.61
14×6	2	1.0	0.2	1.9	29.3	1562	3.08
16×0.5	2	0.6	0.2	1.8	16.6	409	36.0
16×0.75	2	0.6	0.2	1.8	17.6	477	24.5
16×1	2	0.6	0.2	1.8	18.4	542	18.1
16×1.5	2	0.8	0.2	1.8	21.7	745	12.1
16×2.5	2	0.8	0.2	1.8	23.7	949	7.41
16×4	2	1.0	0.2	1.8	28.1	1362	4.61
16×6	2	1.0	0.2	1.9	30.8	1744	3.08
19×0.5	2	0.6	0.2	1.8	17.2	446	36.0
19×0.75	2	0.6	0.2	1.8	18.3	524	24.5
19×1	2	0.6	0.2	1.8	19.2	599	18.1
19×1.5	2	0.8	0.2	1.8	22.7	832	12.1
19×2.5	2	0.8	0.2	1.8	24.8	1068	7.41
19×4	2	1.0	0.2	1.9	29.7	1559	4.61
19×6	2	1.0	0.2	2.0	32.9	2018	3.08
20×0.5	2	0.6	0.2	1.8	17.9	469	36.0
20×0.75	2	0.6	0.2	1.8	19.0	551	24.5
20×1	2	0.6	0.2	1.8	20.0	630	18.1
20×1.5	2	0.8	0.2	1.8	23.7	877	12.1
20×2.5	2	0.8	0.2	1.8	25.9	1126	7.41

No. of Cores and Nominal Cross Section	Conductor Type	Nominal Insulation Thickness	Nominal Copper Tape Thickness	Nominal Sheath Thickness	Approx. Overall Diameter	Approx. Weight	Max. D.C. Resistance of Conductor at 20℃
No. × mm2		mm	mm	mm	mm	kg/km	Ω/km
20×4	2	1.0	0.2	1.9	31.2	1643	4.61
20×6	2	1.0	0.2	2.0	34.9	2165	3.08
21×0.5	2	0.6	0.2	1.8	17.9	478	36.0
21×0.75	2	0.6	0.2	1.8	19.0	563	24.5
21×1	2	0.6	0.2	1.8	20.0	645	18.1
21×1.5	2	0.8	0.2	1.8	23.7	900	12.1
21×2.5	2	0.8	0.2	1.8	25.9	1159	7.41
21×4	2	1.0	0.2	1.9	31.2	1697	4.61
21×6	2	1.0	0.2	2.0	34.9	2238	3.08
22×0.5	2	0.6	0.2	1.8	18.6	501	36.0
22×0.75	2	0.6	0.2	1.8	19.8	591	24.5
22×1	2	0.6	0.2	1.8	20.8	677	18.1
22×1.5	2	0.8	0.2	1.8	24.8	946	12.1
22×2.5	2	0.8	0.2	1.8	27.2	1218	7.41
22×4	2	1.0	0.2	2.0	33.6	1845	4.61
22×6	2	1.0	0.5	2.1	38.1	2723	3.08
24×0.5	2	0.6	0.2	1.8	19.3	538	36.0
24×0.75	2	0.6	0.2	1.8	20.6	635	24.5
24×1	2	0.6	0.2	1.8	21.6	728	18.1
24×1.5	2	0.8	0.2	1.8	25.8	1019	12.1
24×2.5	2	0.8	0.2	1.8	28.4	1316	7.41
24×4	2	1.0	0.2	2.0	35.1	1995	4.61
24×6	2	1.0	0.5	2.2	39.9	2957	3.08
27×0.5	2	0.6	0.2	1.8	19.6	566	36.0
27×0.75	2	0.6	0.2	1.8	20.9	673	24.5
27×1	2	0.6	0.2	1.8	22.0	775	18.1
27×1.5	2	0.8	0.2	1.8	26.3	1094	12.1
27×2.5	2	0.8	0.2	1.9	29.1	1433	7.41
27×4	2	1.0	0.2	2.1	36.0	2178	4.61
27×6	2	1.0	0.5	2.2	40.7	3190	3.08
30×0.5	2	0.6	0.2	1.8	20.2	603	36.0
30×0.75	2	0.6	0.2	1.8	21.5	720	24.5
30×1	2	0.6	0.2	1.8	22.7	832	18.1
30×1.5	2	0.8	0.2	1.8	27.1	1180	12.1
30×2.5	2	0.8	0.2	1.9	30.0	1553	7.41
30×4	2	1.0	0.5	2.1	38.4	2726	4.61

No. of Cores and Nominal Cross Section	Conductor Type	Nominal Insulation Thickness	Nominal Copper Tape Thickness	Nominal Sheath Thickness	Approx. Overall Diameter	Approx. Weight	Max. D.C. Resistance of Conductor at 20℃
No. × mm²		mm	mm	mm	mm	kg/km	Ω/km
30×6	2	1.0	0.5	2.3	42.2	3473	3.08
33×0.5	2	0.6	0.2	1.8	20.8	645	36.0
33×0.75	2	0.6	0.2	1.8	22.2	772	24.5
33×1	2	0.6	0.2	1.8	23.4	894	18.1
33×1.5	2	0.8	0.2	1.8	28.1	1272	12.1
33×2.5	2	0.8	0.2	1.9	31.1	1679	7.41
33×4	2	1.0	0.5	2.2	39.9	2953	4.61
33×6	2	1.0	0.5	2.3	43.7	3749	3.08
37×0.5	2	0.6	0.2	1.8	21.4	690	36.0
37×0.75	2	0.6	0.2	1.8	22.9	831	24.5
37×1	2	0.6	0.2	1.8	24.1	966	18.1
37×1.5	2	0.8	0.2	1.9	29.2	1395	12.1
37×2.5	2	0.8	0.2	2.0	32.7	1858	7.41
37×4	2	1.0	0.5	2.2	41.3	3208	4.61
37×6	2	1.0	0.5	2.4	45.4	4110	3.08
44×0.5	2	0.6	0.2	1.8	23.5	800	36.0
44×0.75	2	0.6	0.2	1.8	25.2	965	24.5
44×1	2	0.6	0.2	1.8	26.6	1125	18.1
44×1.5	2	0.8	0.2	2.0	32.9	1656	12.1
44×2.5	2	0.8	0.5	2.1	38.1	2589	7.41
44×4	2	1.0	0.5	2.4	46.6	3831	4.61
44×6	2	1.0	0.5	2.5	51.1	4884	3.08
48×0.5	2	0.6	0.2	1.8	23.8	836	36.0
48×0.75	2	0.6	0.2	1.8	25.5	1015	24.5
48×1	2	0.6	0.2	1.8	27.0	1186	18.1
48×1.5	2	0.8	0.2	2.0	33.8	1791	12.1
48×2.5	2	0.8	0.5	2.2	38.8	2752	7.41
48×4	2	1.0	0.5	2.4	47.3	4061	4.61
48×6	2	1.0	0.5	2.6	52.1	5215	3.08
52×0.5	2	0.6	0.2	1.8	24.4	883	36.0
52×0.75	2	0.6	0.2	1.8	26.1	1074	24.5
52×1	2	0.6	0.2	1.8	27.6	1259	18.1
52×1.5	2	0.8	0.2	2.0	34.6	1903	12.1
52×2.5	2	0.8	0.5	2.2	39.8	2917	7.41
52×4	2	1.0	0.5	2.5	48.7	4338	4.61
52×6	2	1.0	0.5	2.6	53.4	5556	3.08

No. of Cores and Nominal Cross Section	Conductor Type	Nominal Insulation Thickness	Nominal Copper Tape Thickness	Nominal Sheath Thickness	Approx. Overall Diameter	Approx. Weight	Max. D.C. Resistance of Conductor at 20℃
No. × mm²		mm	mm	mm	mm	kg/km	Ω/km
61×0.5	2	0.6	0.2	1.8	25.6	987	36.0
61×0.75	2	0.6	0.2	1.8	27.5	1208	24.5
61×1	2	0.6	0.2	1.9	29.3	1434	18.1
61×1.5	2	0.8	0.5	2.1	37.9	2526	12.1
61×2.5	2	0.8	0.5	2.3	42.1	3309	7.41
61×4	2	1.0	0.5	2.6	51.6	4940	4.61
61×6	2	1.0	0.5	2.7	56.6	6351	3.08
