Medium voltage cables for distribution networks; also for connection to generation units and plant and process connection. To be laid directly in ground, outdoors, indoors and in cable ducts.

Quote Now

Application
Medium voltage cables for distribution networks; also for connection to generation units and plant and process connection. To be laid directly in ground, outdoors, indoors and in cable ducts.

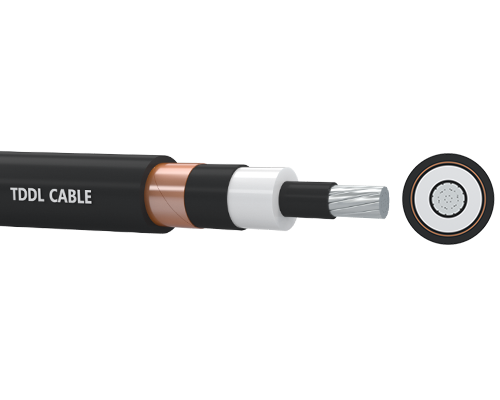

Construction
● Conductor: Aluminum, class 2, circular compacted conductors
● Conductor screen: Non-metallic, semi-conducting compound
● Insulation: Cross-linked polyethylene XLPE
● Insulation screen: Non-metallic, semi-conducting compound
● Metallic screen: Copper tape
● Outer sheath: Polyvinyl chloride PVC

Chaircteritics
Good electrical and mechanical properties. Minimal dielectric loss, high insulation resistance. The PVC outer sheath allows adequate resistance to grease, oil and abrasion.

Specification
IEC 60228 Conductors of Insulate Cables.
IEC 60502-2 Power cables with Extruded Insulation and Their Accessories for Rated Voltages from 1kV (Um=1.2kV) up to 30kV (Um=36kV) - Part 2: Cables for Rated Voltages of 6kV (Um=7.2kV) and 30kV (Um=36kV)

High reliability

Super high pressure

Less maintenance

Technical Parameter

IEC 60502-2

No. of Cores and Nominal Cross Section	Min.Number of Wires	Nominal Insulation Thickness	Nominal Copper Tape Thickness	Nominal Sheath Thickness	Approx. Overall Diameter	Approx. Weight	Max. D.C. Resistance of Conductor at 20℃
mm²	No.	mm	mm	mm	mm	kg/km	Ω/km
3.6/6(7.2)kV
1X25	6	2.5	0.12	1.5	17.1	342	1.20
1X35	6	2.5	0.12	1.5	18.1	391	0.868
1X50	6	2.5	0.12	1.6	19.4	457	0.641
1X70	12	2.5	0.12	1.6	21.1	552	0.443
1X95	15	2.5	0.12	1.7	23.1	674	0.320
1X120	15	2.5	0.12	1.7	24.3	766	0.253
1X150	15	2.5	0.12	1.8	26.0	884	0.206
1X185	30	2.5	0.12	1.8	27.7	1023	0.164
1X240	30	2.6	0.12	1.9	30.4	1257	0.125
1X300	30	2.8	0.12	2.0	33.2	1512	0.100
1X400	53	3.0	0.12	2.1	36.5	1853	0.0778
1X500	53	3.2	0.12	2.2	40.5	2283	0.0605
1X630	53	3.2	0.12	2.3	44.4	2788	0.0469
