ACSS-Aluminum Conductor Steel Supported

APPLICATION
ACSS is used for overhead distribution and transmission lines. It is designed to operate continuously at elevated temperatures up to 250°C without loss of strength; it sags less than a comparable ACSR under electrical loadings; it is self-damping if prestretched during installation; and its final sags are not affected by long term creep of aluminum. The advantages make ACSS especially useful in reconductoring applications requiring increased current with existing tensions and clearances, new line applications where structures can be economized because of reduced conductor sag, new line applications requiring high emergency loadings, and lines where aeolian vibration is a problem.

DESCRIPTION

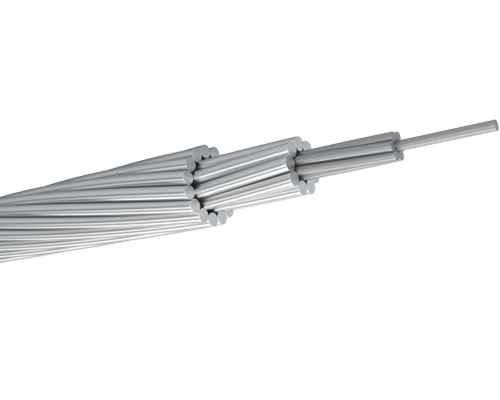

ACSS is a composite concentric-lay stranded conductor. Steel strands form the central core of the conductor with two or more layers of aluminum 1350-O wire stranded around it. The steel core carries most or all of the mechanical load of the conductor due to the "O" temper (fully annealed or soft) aluminum. Steel core wires are protected from corrosion by a zinc-5% Aluminum - mischmetal alloy coating. Corrosion protection should be selected to suit the environment to which the conductor will be exposed.

SPECIFICATIONS
• ASTM B 856 Concentric-Lay-Stranded Aluminum Conductors,Coated Steel Supported (ACSS)

High reliability

Super high pressure

Less maintenance

Technical Parameter

ASTM B 856

ACSS

Code Word	Area				Stranding and Wire Diameter		Approx. Overall Diameter	Nominal Mass	Rated Strength			Nominal DC Resistance at 20℃
	Nominal	Alum.	Steel	Total	Alum.	Steel	Approx. Overall Diameter	Nominal Mass	GA2	GA3	AW2	Nominal DC Resistance at 20℃
	MCM	mm2	mm2	mm2	mm	mm	mm	kg/km	kN	kN	kN	Ω/km
PARTRIDGE	266.8	135.19	22.02	157.21	26/2.57	7/2.00	16.30	547	39.50	43.28	37.23	0.2065
JUNCO	266.8	135.19	31.54	166.72	30/2.40	7/2.40	16.77	622	52.04	57.82	49.82	0.2049
OSTRICH	300.0	152.01	24.73	176.69	26/2.73	7/2.12	17.27	614	44.48	48.48	41.81	0.1837
LINNET	336.4	170.45	27.78	198.10	26/2.89	7/2.25	18.30	689	49.82	54.71	46.70	0.1638
ORIOLE	336.4	170.45	39.78	210.26	30/2.69	7/2.69	18.83	784	65.83	72.50	63.16	0.1625
BRANT	397.5	201.41	26.11	227.54	24/3.27	7/2.18	19.61	762	48.93	53.82	46.26	0.1393
IBIS	397.5	201.41	32.83	234.09	26/3.14	7/2.44	19.89	814	57.82	63.16	55.16	0.1386
LARK	397.5	201.41	46.99	248.38	30/2.92	7/2.92	20.46	926	77.84	85.85	74.28	0.1375
FLICKER	477.0	241.70	31.34	273.11	24/3.58	7/2.39	21.49	915	57.82	63.16	55.60	0.1161
HAWK	477.0	241.70	39.32	280.85	26/3.44	7/2.67	21.78	976	69.39	76.06	66.28	0.1155
HEN	477.0	241.70	56.40	298.11	30/3.20	7/3.20	22.42	1112	93.41	100.97	89.40	0.1146
PARAKEET	556.5	281.98	36.54	318.62	24/3.87	7/2.58	23.21	1067	67.61	73.84	64.94	0.0995
DOVE	556.5	281.98	45.93	327.92	26/3.72	7/2.89	23.54	1140	80.95	88.52	77.84	0.0990
EAGLE	556.5	281.98	65.80	347.79	30/3.46	7/3.46	24.22	1297	108.98	117.87	101.86	0.0982
PEACOCK	605.0	306.55	39.70	346.37	24/4.03	7/2.69	24.20	1160	73.39	80.06	70.72	0.0915
SQUAB	605.0	306.55	49.89	356.28	26/3.87	7/3.01	24.53	1239	87.63	96.52	84.51	0.0911
WOOD DUCK	605.0	306.55	71.52	378.04	30/3.61	7/3.61	25.25	1410	115.65	125.88	108.53	0.0904
TEAL	605.0	306.55	69.89	376.40	30/3.61	19/2.16	25.25	1398	118.32	130.33	111.20	0.0904
ROOK	636.0	322.26	41.76	364.07	24/4.14	7/2.76	24.81	1219	76.95	84.51	74.28	0.0871
GROSBEAK	636.0	322.26	52.45	374.71	26/3.97	7/3.09	25.16	1303	92.07	99.64	88.52	0.0866
SCOTER	636.0	322.26	75.19	397.45	30/3.70	7/3.70	25.89	1482	121.88	132.11	111.64	0.0860
EGRET	636.0	322.26	73.54	395.80	30/3.70	19/2.22	25.89	1471	124.54	137.44	116.98	0.0860
FLAMINGO	666.6	337.77	43.78	381.72	24/4.23	7/2.82	25.40	1278	80.95	88.52	77.84	0.0831
GANNET	666.6	337.77	54.98	392.67	26/4.07	7/3.16	25.75	1365	96.52	104.08	92.96	0.0827
STILT	715.5	362.54	46.99	409.70	24/4.39	7/2.92	26.32	1372	86.74	94.74	83.62	0.0774
STARLING	715.5	362.54	59.02	421.62	26/4.21	7/3.28	26.69	1466	103.64	112.09	97.86	0.0770
REDWING	715.5	362.54	82.73	445.12	30/3.92	19/2.35	27.46	1654	137.44	151.68	131.22	0.0765
CUCKOO	795.0	402.83	52.19	455.01	24/4.62	7/3.08	27.73	1524	96.52	103.64	92.96	0.0696
DRAKE	795.0	402.83	65.60	468.61	26/4.44	7/3.45	28.13	1629	115.20	124.54	108.53	0.0693
MACAW	795.0	402.83	20.70	423.65	42/3.50	7/1.94	26.82	1278	52.49	56.04	50.71	0.0705
TERN	795.0	402.83	27.84	430.58	45/3.38	7/2.25	27.01	1333	63.16	67.61	60.05	0.0703
CONDOR	795.0	402.83	52.19	454.79	54/3.08	7/3.08	27.73	1523	96.52	103.64	92.96	0.0696
MALLARD	795.0	402.83	91.90	494.79	30/4.14	19/2.48	28.95	1838	152.57	168.58	146.34	0.0688
RUDDY	900.0	456.03	31.54	487.44	45/3.59	7/2.40	28.74	1509	70.28	75.62	68.05	0.0621

Code Word	Area				Stranding and Wire Diameter		Approx. Overall Diameter	Nominal Mass	Rated Strength			Nominal DC Resistance at 20℃
	Nominal	Alum.	Steel	Total	Alum.	Steel	Approx. Overall Diameter	Nominal Mass	GA2	GA3	AW2	Nominal DC Resistance at 20℃
	MCM	mm2	mm2	mm2	mm	mm	mm	kg/km	kN	kN	kN	Ω/km
CANARY	900.0	456.03	59.12	515.16	54/3.28	7/3.28	29.51	1725	109.42	117.43	103.19	0.0615
REDBIRD	954.0	483.39	62.65	546.17	24/5.06	7/3.38	30.39	1829	115.65	124.54	109.42	0.0580
RAIL	954.0	483.39	33.44	516.83	45/3.70	7/2.47	29.59	1600	74.28	80.06	72.06	0.0586
TOWHEE	954.0	483.39	42.68	526.23	48/3.58	7/2.79	29.85	1673	87.63	94.74	84.51	0.0584
CARDINAL	954.0	483.39	62.65	545.93	54/3.38	7/3.38	30.38	1828	115.65	124.54	109.42	0.0580
CANVASBACK	954.0	483.39	110.22	593.49	30/4.53	19/2.72	31.70	2205	182.81	201.94	175.25	0.0572
SNOWBIRD	1033.5	523.67	26.91	550.81	42/3.99	7/2.21	30.57	1662	68.50	72.95	65.83	0.0542
ORTOLAN	1033.5	523.67	36.18	559.54	45/3.85	7/2.57	30.78	1733	80.51	86.74	78.28	0.0541
CURLEW	1033.5	523.67	67.84	591.20	54/3.51	7/3.51	31.62	1980	125.43	134.77	116.09	0.0536
BLUEJAY	1113.0	563.96	38.96	603.15	45/4.00	7/2.66	31.96	1867	86.74	93.41	84.07	0.0502
FINCH	1113.0	563.96	71.37	635.61	54/3.65	19/2.19	32.82	2129	135.22	147.67	127.66	0.0500
BUNTING	1192.5	604.24	41.76	646.09	45/4.14	7/2.76	33.08	2001	92.96	100.08	90.29	0.0468
GRACKLE	1192.5	604.24	76.60	680.81	54/3.77	19/2.27	33.98	2282	145.00	157.90	137.00	0.0467
BITTERN	1272.0	644.52	44.57	688.90	45/4.27	7/2.85	34.16	2133	99.19	106.75	96.08	0.0439
PHEASANT	1272.0	644.52	81.66	726.38	54/3.90	19/2.34	35.09	2434	151.68	165.91	145.89	0.0438
DIPPER	1351.0	684.55	47.32	732.12	45/4.40	7/2.93	35.21	2267	105.42	113.42	102.30	0.0413
MARTIN	1351.0	684.55	86.71	771.51	54/4.02	19/2.41	36.16	2585	161.02	176.14	155.24	0.0412
BOBOLINK	1431.0	725.09	50.14	775.04	45/4.53	7/3.02	36.23	2400	111.64	120.10	108.09	0.0390
POLVER	1431.0	725.09	91.90	817.10	54/4.14	19/2.48	37.22	2738	170.80	186.37	164.13	0.0389
NUTHATCH	1510.0	765.12	52.88	818.16	45/4.65	7/3.10	37.22	2533	117.87	124.99	114.31	0.0370
PARROT	1510.0	765.12	96.85	861.79	54/4.25	19/2.55	38.22	2888	179.70	196.60	173.03	0.0369
RATITE	1590.0	805.65	41.45	847.37	42/4.94	7/2.75	37.89	2557	104.08	111.20	100.97	0.0352
LAPWING	1590.0	805.65	55.69	861.60	45/4.78	7/3.18	38.20	2668	124.10	131.66	120.10	0.0351
FALCON	1590.0	805.65	102.14	907.86	54/4.36	19/2.62	39.23	3043	189.48	207.28	182.81	0.0350
CHUKAR	1780.0	901.93	73.37	975.69	84/3.70	19/2.22	40.67	3086	157.01	169.91	149.45	0.0315
MOCKINGBIRD	2034.5	1030.88	44.57	1075.50	72/4.27	7/2.85	34.17	3218	120.99	128.55	117.87	0.0277
ROADRUNNER	2057.0	1042.28	56.79	1098.87	76/4.18	19/1.95	34.83	3346	141.00	150.79	134.77	0.0273
BLUEBIRD	2156.0	1092.45	88.91	1181.26	84/4.07	19/2.44	44.76	3737	187.26	202.38	181.03	0.0260
KIWI	2167.0	1098.02	47.48	1145.70	72/4.41	7/2.94	35.28	3428	128.99	137.00	125.43	0.0260
THRASHER	2312.0	1171.49	63.79	1235.08	76/4.43	19/2.07	36.93	3760	158.35	169.47	151.68	0.0243
JOREE	2515.0	1274.35	69.39	1343.59	76/4.62	19/2.16	38.52	4091	172.14	184.15	165.02	0.0224
