Description：

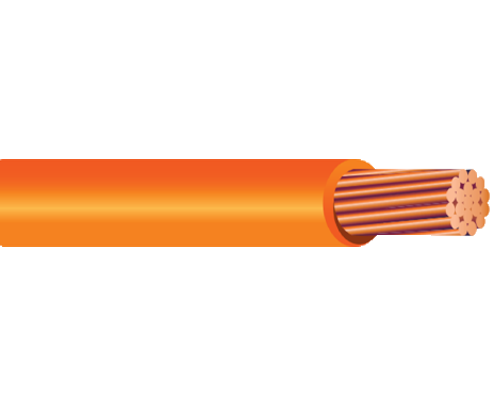

Single conductor, 90℃ Wet/Dry. Insulated with chemically cross-linked polyethylene insulation.

APPLICATION:
1000/600 Volt Type XHHW-2 is intended for use as general purpose wiring for up to 1000 volt rated services in air conduit or other recognized raceways for services, feeders and branch circuit wiring as specified in the National Electrical Code at a maximum conductor temperature of 90℃ in wet or dry locations.

CONSTRUCTION
• Conductors: Annealed stranded bare copper per ASTM B3 and B8. Class B Stranding per ASTM B8.
• Insulation: thermoset cross-linked polyethylene
• Colors: Available in black, white, red, blue, brown, orange, yellow, purple, gray, and green. Some colors are subject to economic order quantity.

STANDARDS & REFERENCES：
Copper Type XHHW-2 conductors comply with the following:
• ASTM – B3 and B8
• Listed per UL Standard 44
• NEMA WC-70 (ICEA S-95-658) Construction Requirements
• Gas & Oil Resistant II - All Sizes
• CT Rated - Sizes 1/0 AWG and larger
• Wet/Dry Locations (90℃)
• Sunlight Resistant – Sizes 8 AWG and larger
• RoHS Compliant

High reliability

Super high pressure

Less maintenance

Technical Parameter

XHHW-2 Copper Conductor

Conductor		Insulation thickness		Nominal O.D.	Approx. weight	Ampacity
AWG/kcmil	Min. No.	mm	mils	mm	kg/km	60℃	75℃	90℃
12	7	0.76	30	3.8	38	20	20	20
10	7	0.76	30	4.4	57	30	30	30
8	7	1.14	45	5.7	94	40	50	55
6	7	1.14	45	6.6	142	55	65	75
4	7	1.14	45	7.7	218	70	85	95
2	7	1.14	45	9.1	336	85	100	115
1	18	1.40	55	10.4	428	95	115	130
1/0	18	1.40	55	11.3	533	110	130	145
2/0	18	1.40	55	12.4	664	125	150	170
3/0	18	1.40	55	13.5	830	145	175	195
4/0	18	1.40	55	14.9	1036	165	200	225
250	35	1.65	65	16.5	1237	195	230	260
300	35	1.65	65	17.8	1470	215	255	290
350	35	1.65	65	19.0	1704	240	285	320
400	35	1.65	65	20.0	1946	260	310	350
500	35	1.65	65	22.0	2410	280	335	380
600	58	2.03	80	24.7	2916	320	380	430
700	58	2.03	80	26.3	3390	350	420	475
750	58	2.03	80	27.1	3622	385	460	520
900	58	2.03	80	29.4	4328	400	475	535
1000	58	2.03	80	31.0	4801	455	545	615

+Allowable ampacities shown are for general use as specified by the 2014 Edition of the National Electrical Code Sections 310.15 and 240.4(D). Unless the equipment is marked for use at higher temperatures the conductor shall be limited to the following per NEC 110.14(C):
75℃ - When terminated to equipment for circuits rated over 100 amperes or marked for conductors larger than 1 AWG.
90℃ - THHN dry locations and THWN-2 wet or dry locations for ampacity adjustment purposes using NEC section 310.15.

For more product details, please download our PDF files.

PDF Download
