APPLICATION:
Type RHH or RHW-2 or USE-2 conductors are used with conduit as specified in the National Electrical Code. When used as Type USE-2, conductors are suitable for use as underground service entrance conductors for direct burial at conductor temperatures not to exceed 90°C. When used as RHW-2 or USE-2, conductor temperatures shall not exceed 90°C in wet or dry locations. Voltage rating for RHW-2 or RHH or USE-2 conductors is 600 volts.

CONSTRUCTION

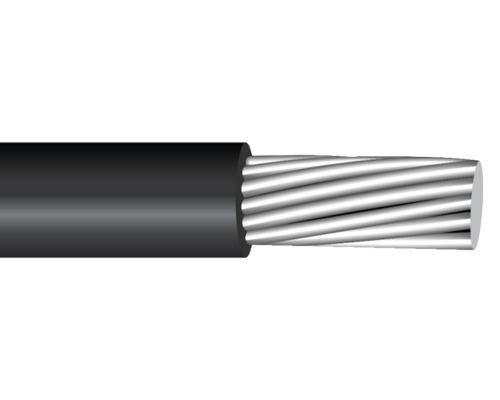

Type RHH or RHW-2 or USE-2 conductors are AA-8000 series aluminum alloy, compact stranded. The insulation is an abrasion, moisture, heat and sunlight-resistant black cross-linked polyethylene (XLP). CT rated available upon request sizes 1/0 and larger.

FEATURES:
● Conductor for reduced diameter
● General purpose use in construction:
● Residential
● Commercial
● Institutional
● Industrial construction

STANDARDS & REFERENCES：
Type RHH or RHW-2 or USE-2 conductors comply with the following:
• ASTM B-800 and B-801
• UL 44 for RHH or RHW-2
• UL 854 for USE-2
• National Electrical Code, NFPA 70, 2011 Edition
• NEMA WC-70 Construction Requirements
• RoHS/Reach Compliant

High reliability

Super high pressure

Less maintenance

Technical Parameter

RHH/RHW-2/USE-2 Aluminium Conductor

	Conductor		Insulation thickness		Nominal O.D.	Approx. weight	Ampacity+
AWG/kcmil	Min. No.	mm	mils	mm	kg/km	60℃	75℃	90℃
6	7	1.52	60	7.3	67	40	50	60
4	7	1.52	60	8.5	95	55	65	75
2	7	1.52	60	9.9	136	75	90	100
1	18	2.03	80	11.7	185	85	100	115
1/0	18	2.03	80	12.6	222	100	120	135
2/0	18	2.03	80	13.6	267	115	135	150
3/0	18	2.03	80	14.8	324	130	155	175
4/0	18	2.03	80	16.1	394	150	180	205
250	35	2.41	95	18.0	480	170	205	230
300	35	2.41	95	19.3	560	190	230	255
350	35	2.41	95	20.5	639	210	250	280
400	35	2.41	95	21.6	719	225	270	305
500	35	2.41	95	23.5	874	260	310	350
600	58	2.79	110	26.2	1065	285	340	385
700	58	2.79	110	27.9	1221	310	375	420
750	58	2.79	110	28.6	1297	320	385	435
900	58	2.79	110	31.0	1529	355	425	480
1000	58	2.79	110	32.5	1685	375	445	500

+Allowable ampacities shown are for general use as specified by the 2014 Edition of the National Electrical Code Sections 310.15 and 240.4(D)

Unless the equipment is marked for use at higher temperatures the conductor shall be limited to the following per NEC 110.14(C):
75℃ - When terminated to equipment for circuits rated over 100 amperes or marked for conductors larger than 1 AWG.
90℃ - THHN dry locations and THWN-2 wet or dry locations for ampacity adjustment purposes using NEC section 310.15.
