N2XBY (YJV22 ) 0.6-1kV

APPLICATION
These power cables are used for electricity supply in low voltage installation systems. They are well adapted to underground use in industrial applications with an additional mechanical protection. These cables can be laying indoor, tunnel and underground. Able to bear external mechanical force, but unable to bear large pulling force.

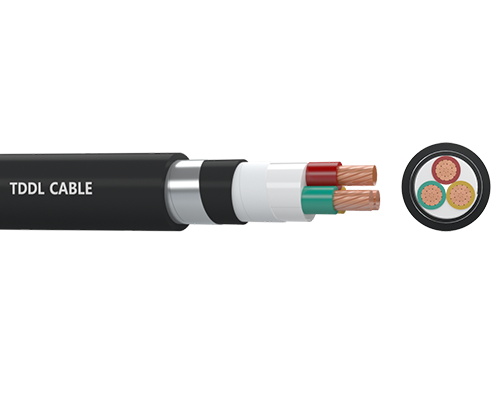

CONSTRUCTION
● Conductor: Copper, class 1 or class 2, solid or stranded, circular or circular compacted conductors
● Insulation: Cross-linked polyethylene XLPE
● Filler: Non-hygroscopic material
● Binder: Non-hygroscopic material
● Inner sheath: Polyvinyl chloride PVC
● Armour: Steel tape
● Outer sheath: Polyvinyl chloride PVC

MAIN CHARACTERRISTICS
Good electrical and mechanical properties. Cross-linked polyethylene insulation allows greater power capacity under any operating condition, minimum dielectric losses, high insulation resistance. The PVC outer sheath allows an adequate resistance to oil and abrasion.

SPECIFICATION
IEC 60228 Conductors of Insulate Cables
IEC 60502-1 Power Cables with Extruded Insulation and Their Accessories for Rated Voltages from 1kV(Um=1.2kV) up to 30kV(Um=36kV) - Part 1: Cables for Rated Voltages of 1kV (Um=1.2kV) and 3kV(Um=3.6kV)

High reliability

Super high pressure

Less maintenance

Technical Parameter

IEC 60502-1

No. of Cores and Nominal Cross Section	Min. Number of Wires	Nominal Insulation Thickness	Nominal Steel Tape Thickness	Nominal Sheath Thickness	Approx. Overall Diameter	Approx. Weight	Max. D.C. Resistance of Conductor at 20℃
No. × mm2	No.	mm	mm	mm	mm	kg/km	Ω/km
2×1.5	1	0.7	0.2	1.8	12.2	220	12.1
2×2.5	1	0.7	0.2	1.8	13.0	256	7.41
2×4	1	0.7	0.2	1.8	14.0	307	4.61
2×6	1	0.7	0.2	1.8	15.0	370	3.08
2×10	6	0.7	0.2	1.8	17.5	509	1.83
2×16	6	0.7	0.2	1.8	19.1	659	1.15
2×25	6	0.9	0.2	1.8	22.3	915	0.727
2×35	6	0.9	0.2	1.8	24.3	1147	0.524
2×50	6	1.0	0.2	1.8	27.3	1463	0.387
2×70	12	1.1	0.2	1.9	30.9	1939	0.268
2×95	15	1.1	0.2	2.0	35.4	2587	0.193
2×120	18	1.2	0.5	2.2	40.2	3557	0.153
2×150	18	1.4	0.5	2.3	44.2	4269	0.124
2×185	30	1.6	0.5	2.5	49.0	5250	0.0991
2×240	34	1.7	0.5	2.6	54.2	6551	0.0754
2×300	34	1.8	0.5	2.8	59.8	8038	0.0601
2×400	53	2.0	0.5	3.0	66.6	10056	0.0470
3×1.5	1	0.7	0.2	1.8	12.7	246	12.1
3×2.5	1	0.7	0.2	1.8	13.5	292	7.41
3×4	1	0.7	0.2	1.8	14.5	359	4.61
3×6	1	0.7	0.2	1.8	15.6	441	3.08
3×10	6	0.7	0.2	1.8	18.4	621	1.83
3×16	6	0.7	0.2	1.8	20.1	827	1.15
3×25	6	0.9	0.2	1.8	23.5	1170	0.727
3X35	6	0.9	0.2	1.8	25.7	1491	0.524
3×50	6	1.0	0.2	1.8	28.9	1922	0.387
3×70	12	1.1	0.2	2.0	33.7	2657	0.268
No. of Cores and Nominal Cross Section	Min. Number of Wires	Nominal Insulation Thickness	Nominal Steel Tape Thickness	Nominal Sheath Thickness	Approx. Overall Diameter	Approx. Weight	Max. D.C. Resistance of Conductor at 20℃
No. × mm2	No.	mm	mm	mm	mm	kg/km	Ω/km
3×95	15	1.1	0.5	2.2	39.2	3884	0.193
3×120	18	1.2	0.5	2.3	42.9	4728	0.153
3×150	18	1.4	0.5	2.4	47.6	5749	0.124
3×185	30	1.6	0.5	2.6	52.3	7045	0.0991
3×240	34	1.7	0.5	2.7	58.3	8927	0.0754
3×300	34	1.8	0.5	2.9	63.9	10919	0.0601
3×400	53	2.0	0.5	3.2	71.4	13772	0.0470
4×1.5	1	0.7	0.2	1.8	13.4	279	12.1
4×2.5	1	0.7	0.2	1.8	14.3	336	7.41
4×4	1	0.7	0.2	1.8	15.5	420	4.61
4×6	1	0.7	0.2	1.8	16.7	525	3.08
4×10	6	0.7	0.2	1.8	19.8	751	1.83
4×16	6	0.7	0.2	1.8	21.7	1016	1.15
4×25	6	0.9	0.2	1.8	25.6	1455	0.727
4×35	6	0.9	0.2	1.8	28.0	1871	0.524
4×50	6	1.0	0.2	1.9	31.8	2440	0.387
4×70	12	1.1	0.2	2.1	37.0	3387	0.268
4×95	15	1.1	0.5	2.3	43.0	4907	0.193
4×120	18	1.2	0.5	2.4	47.5	6044	0.153
4×150	18	1.4	0.5	2.6	52.5	7332	0.124
4×185	30	1.6	0.5	2.7	57.9	9048	0.0991
4×240	34	1.7	0.5	2.9	64.4	11449	0.0754
4×300	34	1.8	0.5	3.1	70.6	14041	0.0601
4×400	53	2.0	0.5	3.4	79.3	17835	0.0470
5×1.5	1	0.7	0.2	1.8	14.2	314	12.1
5×2.5	1	0.7	0.2	1.8	15.2	383	7.41
5×4	1	0.7	0.2	1.8	16.5	485	4.61
5×6	1	0.7	0.2	1.8	17.9	613	3.08
5×10	6	0.7	0.2	1.8	21.3	886	1.83
5×16	6	0.7	0.2	1.8	23.4	1212	1.15
No. of Cores and Nominal Cross Section	Min. Number of Wires	Nominal Insulation Thickness	Nominal Steel Tape Thickness	Nominal Sheath Thickness	Approx. Overall Diameter	Approx. Weight	Max. D.C. Resistance of Conductor at 20℃
No.× mm2	No.	mm	mm	mm	mm	kg/km	Ω/km
5×25	6	0.9	0.2	1.8	27.8	1751	0.727
5×35	6	0.9	0.2	1.9	30.7	2277	0.524
5×50	6	1.0	0.2	2.0	35.6	3029	0.387
5×70	12	1.1	0.5	2.3	42.0	4551	0.268
5×95	15	1.1	0.5	2.4	47.5	6006	0.193
5×120	18	1.2	0.5	2.5	52.0	7354	0.153
5×150	18	1.4	0.5	2.7	57.9	8999	0.124
5×185	30	1.6	0.5	2.9	63.7	11074	0.0991
5×240	34	1.7	0.5	3.1	70.9	14042	0.0754
5×300	34	1.8	0.5	3.4	78.3	17364	0.0601
5×400	53	2.0	0.8	3.7	88.8	22823	0.0470
3×2.5+1×1.5	1/1	0.7/0.7	0.2	1.8	14.1	322	7.41/12.1
3×4+1×2.5	1/1	0.7/0.7	0.2	1.8	15.2	399	4.61/7.41
3×6+1×4	1/1	0.7/0.7	0.2	1.8	16.4	499	3.08/4.61
3×10+1×6	6/1	0.7/0.7	0.2	1.8	19.0	694	1.83/3.08
3×16+1×10	6/6	0.7/0.7	0.2	1.8	21.2	949	1.15/1.83
3×25+1×16	6/6	0.9/0.7	0.2	1.8	24.6	1344	0.727/1.15
3×35+1×16	6/6	0.9/0.7	0.2	1.8	26.4	1653	0.524/1.15
3×50+1×25	6/6	1.0/0.9	0.2	1.9	30.3	2194	0.387/0.727
3×70+1×35	12/6	1.1/0.9	0.2	2.0	34.9	3005	0.268/0.524
3×95+1×50	15/6	1.1/1.0	0.5	2.2	40.7	4369	0.193/0.387
3×120+1×70	18/12	1.2/1.1	0.5	2.3	44.8	5424	0.153/0.268
3×150+1×70	18/12	1.4/1.1	0.5	2.5	49.1	6433	0.124/0.268
3×185+1×95	30/15	1.6/1.1	0.5	2.6	54.0	7959	0.0991/0.193
3×240+1×120	34/18	1.7/1.2	0.5	2.8	60.3	10095	0.0754/0.153
3×300+1×150	34/18	1.8/1.4	0.5	3.0	66.2	12359	0.0601/0.124
3×400+1×185	53/30	2.0/1.6	0.5	3.2	74.0	15608	0.0470/0.0991
3×2.5+2×1.5	1/1	0.7/0.7	0.2	1.8	14.8	355	7.41/12.1
3×4+2×2.5	1/1	0.7/0.7	0.2	1.8	16.0	444	4.61/7.41
3×6+2×4	1/1	0.7/0.7	0.2	1.8	17.3	562	3.08/4.61
No. of Cores and Nominal Cross Section	Min. Number of Wires	Nominal Insulation Thickness	Nominal Steel Tape Thickness	Nominal Sheath Thickness	Approx. Overall Diameter	Approx. Weight	Max. D.C. Resistance of Conductor at 20℃
No.× mm2	No.	mm	mm	mm	mm	kg/km	Ω/km
3×10+2×6	6/1	0.7/0.7	0.2	1.8	19.9	776	1.83/3.08
3×16+2×10	6/6	0.7/0.7	0.2	1.8	22.6	1081	1.15/1.83
3×25+2×16	6/6	0.9/0.7	0.2	1.8	26.0	1532	0.727/1.15
3×35+2×16	6/6	0.9/0.7	0.2	1.8	27.7	1836	0.524/1.15
3×50+2×25	6/6	1.0/0.9	0.2	1.9	32.7	2525	0.387/0.727
3×70+2×35	12/6	1.1/0.9	0.2	2.1	36.9	3399	0.268/0.524
3×95+2×50	15/6	1.1/1.0	0.5	2.3	43.1	4917	0.193/0.387
3×120+2×70	18/12	1.2/1.1	0.5	2.4	48.1	6235	0.153/0.268
3×150+2×70	18/12	1.4/1.1	0.5	2.5	51.4	7165	0.124/0.268
3×185+2×95	30/15	1.6/1.1	0.5	2.7	57.4	9040	0.0991/0.193
3×240+2×120	34/18	1.7/1.2	0.5	2.9	63.5	11363	0.0754/0.153
3×300+2×150	34/18	1.8/1.4	0.5	3.1	69.9	13917	0.0601/0.124
3×400+2×185	53/30	2.0/1.6	0.5	3.4	78.2	17581	0.0470/0.0991
4×2.5+1×1.5	1/1	0.7/0.7	0.2	1.8	15.0	369	7.41/12.1
4×4+1×2.5	1/1	0.7/0.7	0.2	1.8	16.2	464	4.61/7.41
4×6+1×4	1/1	0.7/0.7	0.2	1.8	17.6	587	3.08/4.61
4×10+1×6	6/1	0.7/0.7	0.2	1.8	20.6	831	1.83/3.08
4×16+1×10	6/6	0.7/0.7	0.2	1.8	23.0	1147	1.15/1.83
4×25+1×16	6/6	0.9/0.7	0.2	1.8	26.9	1641	0.727/1.15
4×35+1×16	6/6	0.9/0.7	0.2	1.8	29.1	2049	0.524/1.15
4×50+1×25	6/6	1.0/0.9	0.2	2.0	34.3	2783	0.387/0.727
4×70+1×35	12/6	1.1/0.9	0.5	2.2	40.1	4152	0.268/0.524
4×95+1×50	15/6	1.1/1.0	0.5	2.3	45.0	5427	0.193/0.387
4×120+1×70	18/12	1.2/1.1	0.5	2.5	50.1	6804	0.153/0.268
4×150+1×70	18/12	1.4/1.1	0.5	2.6	54.4	8047	0.124/0.268
4×185+1×95	30/15	1.6/1.1	0.5	2.8	60.5	10052	0.0991/0.193
4×240+1×120	34/18	1.7/1.2	0.5	3.0	67.2	12697	0.0754/0.153
4×300+1×150	34/18	1.8/1.4	0.5	3.2	74.2	15654	0.0601/0.124
4×400+1×185	53/30	2.0/1.6	0.8	3.6	84.2	20594	0.0470/0.0991

For more product details, please download our PDF files.
