These power cables are used for electricity supply in low voltage installation systems. They are well adapted to underground use in industrial applications with an additional mechanical protection. These cables can be fixed on cable trays, within conduits or fixed to walls.

Quote Now

APPLICATION
These power cables are used for electricity supply in low voltage installation systems. They are well adapted to underground use in industrial applications with an additional mechanical protection. These cables can be fixed on cable trays, within conduits or fixed to walls.

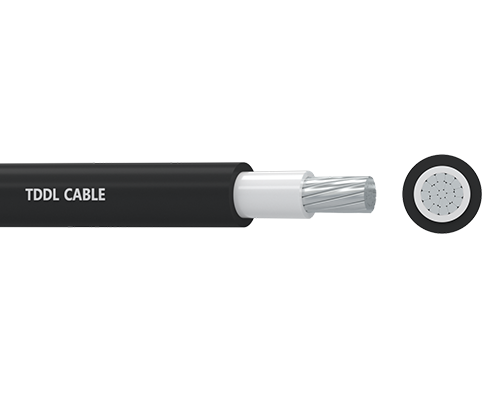

CONSTRUCTION
● Conductor: Aluminum, class 1 or class 2, solid or stranded, circular or circular compacted conductors
● Insulation: Cross-linked polyethylene XLPE
● Outer sheath: Polyvinyl chloride PVC

MAIN CHARACTERRISTICS
Good electrical and mechanical properties. Cross-linked polyethylene insulation allows greater power capacity under any operating condition, minimum dielectric losses, high insulation resistance. The PVC outer sheath allows an adequate resistance to oil and abrasion.

SPECIFICATION
IEC 60228 Conductors of Insulate Cables
IEC 60502-1 Power Cables with Extruded Insulation and Their Accessories for Rated Voltages from 1kV(Um=1.2kV) up to 30kV(Um=36kV) - Part 1: Cables for Rated Voltages of 1kV (Um=1.2kV) and 3kV(Um=3.6kV)

High reliability

Super high pressure

Less maintenance

Technical Parameter

IEC 60502-1

No. of Cores and Nominal Cross Section	Min. Number of Wires	Nominal Insulation Thickness	Nominal Sheath Thickness	Approx. Overall Diameter	Approx. Weight	Max. D.C. Resistance of Conductor at 20℃
No. × mm2	No.	mm	mm	mm	kg/km	Ω/km
1×2.5	1	0.7	1.4	6.0	41	12.1
1×4	1	0.7	1.4	6.4	49	7.41
1×6	1	0.7	1.4	6.9	59	4.61
1×10	6	0.7	1.4	8.2	77	3.08
1×16	6	0.7	1.4	9.0	101	1.91
1×25	6	0.9	1.4	10.6	143	1.20
1×35	6	0.9	1.4	11.6	177	0.868
1×50	6	1.0	1.4	13.1	224	0.641
1×70	12	1.1	1.4	14.8	300	0.443
1×95	15	1.1	1.5	16.8	394	0.320
1×120	15	1.2	1.5	18.4	476	0.253
1×150	15	1.4	1.6	20.5	587	0.206
1×185	30	1.6	1.6	22.5	717	0.164
1×240	30	1.7	1.7	25.2	918	0.125
1×300	30	1.8	1.8	27.8	1130	0.100
1×400	53	2.0	1.9	31.2	1431	0.0778
1×500	53	2.2	2.0	34.7	1794	0.0605
1×630	53	2.4	2.2	39.2	2292	0.0469

For more product details, please download our PDF files.
