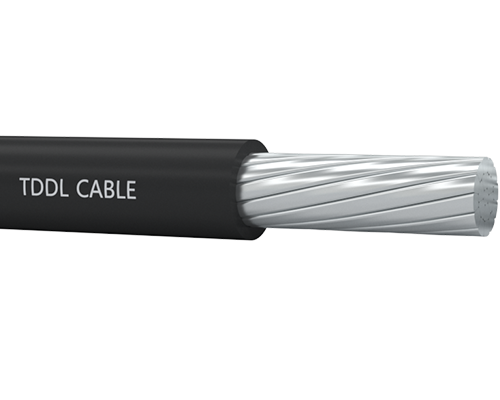

Covered Line Wire (ICEA S-70-547)

The conductors are stranded, circular compressed or uncompressed aluminum, copper, aluminum-alloy, ACSR or ACSR/AW etc., concentrically stranded and covered for Weather or UV resistant with thermoplastic polyethylene (PE) or Cross linked polyethylene (XLPE) in black.

DOWNLOAD CATEGORY SPECIFICATIONS

PDF Download

Application
This standard applies to the materials,constructions,and testing of weather-resistant thermoplastic and cross linked polyethylene covered conductors,rated for 75℃ or 90℃ normal service temperature.These conductors are intended primarily for the distribution of electrical energy under normal conditions of overhead(aerial)installations and service outdoors.

Construction
The conductors are stranded, circular compressed or uncompressed aluminum, copper, aluminum-alloy, ACSR or ACSR/AW etc., concentrically stranded and covered for Weather or UV resistant with thermoplastic polyethylene (PE) or Cross linked polyethylene (XLPE) in black.

Specifications
• ANSI / ICEA S-70-574 Weather-Resistant Polyethylene Covered Conductors
• ASTM B 231 Class AA, A, or B Stranded Aluminum 1350 (Excluding Unilay Compressed)
• ASTM B 400 Compact-Round Stranded Aluminum 1350 Conductors.
• ASTM B 399 Class AA, or A Stranded Aluminum-Alloy 6201 T-81 Conductors.
• ASTM B 232 Concentric-Lay-Stranded Aluminum Conductors, Coated-Steel Reinforced (ACSR)
• ASTM B 549 Concentric-Lay-Stranded Aluminum Conductors, Aluminum-Clad Steel Reinforced (ACSR/AW)

High reliability

Super high pressure

Less maintenance

Technical Parameter

ICEA S-70-547

Weather-Resistant Polyethylene Covered Conductor

Code Word	Conductor Size	No. of Wires	Nominal Thickness of covering	Approx. Diameter of cable	Approx.Weight
Code Word	kcmil (AWG)	No.	mm	mm	kg/km
AAC/XLPE
Prune	10.38 (10)	1	0.76	4.1	22
Cumquat	16.51(8)	1	0.76	4.8	32
Apple	26.24(6)	1	0.76	5.6	48
Plum	26.24(6)	7	0.76	6.2	52
Pear	41.74(4)	1	0.76	6.7	72
Apricot	41.74(4)	7	0.76	7.4	78
Cherry	66.36(2)	1	1.14	8.8	120
Peach	66.36(2)	7	1.14	9.7	130
Nectarine	83.69(1)	7	1.14	10.6	159
Quince	105.6(1/0)	7	1.52	12.4	209
Haw	105.6(1/0)	19	1.52	12.5	205
Orange	133.1(2/0)	7	1.52	13.5	256
Ironwood	133.1(2/0)	19	1.52	13.7	251
Fig	167.8(3/0)	7	1.52	14.8	314
Lemon	167.8(3/0)	19	1.52	15.0	308
Olive	211.6(4/0)	7	1.52	16.3	387
Pomegranate	211.6(4/0)	19	1.52	16.4	378
Sassafras	250	19	1.52	17.6	440
Catalpa	250	19	2.03	18.6	468
Mulberry	266.8	19	1.52	18.1	467
Silverbelt	266.8	19	2.03	19.1	496
Basswood	300	19	1.52	19.0	520
Sycamore	300	19	2.03	20.0	549
Anona	336.4	19	1.52	19.9	578
Crabapple	336.4	19	2.03	21.0	609
Chinquapin	350	19	1.52	20.3	599
Ginkgo	350	19	2.03	21.3	631
Molles	397.5	19	2.03	22.4	708
Ash	400	19	2.03	22.5	712
Sumac	450	37	2.03	23.7	783
Citron	477	19	2.03	24.2	834
Huckleberry	477	37	2.03	24.2	825
Tupelo	500	37	2.03	24.7	861

Code Word	Conductor Size	No. of wires	Nominal Thickness of Covering	Approx.Diameter of Cable	Approx.Weight
Code Word	kcmil (AWG)	No.	mm	mm	kg/km
AAC/XLPE
Paw Paw	556.5	37	2.03	25.9	951
Tangerine	636	37	2.41	28.1	1107
Breadfruit	636	61	2.41	28.2	1100
Banana	795	37	2.41	30.9	1357
Persimmon	795	61	2.41	30.9	1350
Grapefruit	1033.5	61	2.41	34.6	1719
Mango	1590	61	2.79	42.5	2616
AAAC/XLPE
Birch	30.58(6)	1	0.76	6.0	55
Maple	30.58(6)	7	0.76	6.6	59
Poplar	48.69(4)	1	0.76	7.1	83
Hornbeam	48.69(4)	7	0.76	7.9	90
Elm	77.47(2)	1	1.14	9.4	135
Linden	77.47(2)	7	1.14	10.3	145
Corktree	97.63(1)	7	1.14	11.3	180
Oilnut	123.3(1/0)	7	1.52	13.2	230
Waterash	155.4(2/0)	7	1.52	14.4	290
Shellbark	195.7(3/0)	7	1.52	15.8	360
Planetree	246.9(4/0)	7	1.52	17.4	440
ACSR/XLPE
Walnut	26.24(6)	6 / 1	0.76	6.6	70
Acorn	33.09(5)	6 / 1	0.76	7.2	87
Butternut	41.74(4)	6 / 1	0.76	7.9	108
Hickory	41.74(4)	7 / 1	0.76	8.1	122
Hazelnut	52.62(3)	6 / 1	1.14	9.4	144
Pignut	66.36(2)	6 / 1	1.14	10.3	177
Beech	66.36(2)	7 / 1	1.14	10.5	200
Chestnut	83.69(1)	6 / 1	1.14	11.3	218
Almond	105.6(1/0)	6 / 1	1.52	13.2	284
Pecan	133.1(2/0)	6 / 1	1.52	14.4	350
Cottonwood	133.1(2/0)	6 / 1	2.03	15.4	373
Filbert	167.8(3/0)	6 / 1	1.52	15.8	432
Chokeberry	167.8(3/0)	6 / 1	2.03	16.8	457

Code Word	Conductor Size	No. of Wires	Nominal Thickness of Covering	Approx.Diameter of Cable	Approx.Weight
Code Word	kcmil (AWG)	No.	mm	mm	kg/km
ACSR/XLPE
Buckeye	211.6(4/0)	6 / 1	1.52	17.4	535
Gumwood	211.6(4/0)	6 / 1	2.03	18.4	563
Hackberry	266.8	18 / 1	1.52	18.5	529
Redbud	266.8	18 / 1	2.03	19.5	558
Mockernut	336.4	18 / 1	1.52	20.4	656
Aspen	336.4	18 / 1	2.03	21.4	688
ACSR/AW /XLPE
Walnut	26.24(6)	6 / 1	0.76	6.6	68
Acorn	33.09(5)	6 / 1	0.76	7.2	84
Butternut	41.74(4)	6 / 1	0.76	7.9	103
Hickory	41.74(4)	7 / 1	0.76	8.1	115
Hazelnut	52.62(3)	6 / 1	1.14	9.4	138
Pignut	66.36(2)	6 / 1	1.14	10.3	170
Beech	66.36(2)	7 / 1	1.14	10.5	189
Chestnut	83.69(1)	6 / 1	1.14	11.3	209
Almond	105.6(1/0)	6 / 1	1.52	13.2	274
Pecan	133.1(2/0)	6 / 1	1.52	14.4	336
Cottonwood	133.1(2/0)	6 / 1	2.03	15.4	359
Filbert	167.8(3/0)	6 / 1	1.52	15.8	415
Chokeberry	167.8(3/0)	6 / 1	2.03	16.8	440
Buckeye	211.6(4/0)	6 / 1	1.52	17.4	514
Gumwood	211.6(4/0)	6 / 1	2.03	18.4	541
Hackberry	266.8	18 / 1	1.52	18.5	520
Redbud	266.8	18 / 1	2.03	19.5	549
Mockernut	336.4	18 / 1	1.52	20.4	645
Aspen	336.4	18 / 1	2.03	21.4	677

For more product details, please download our PDF files.
