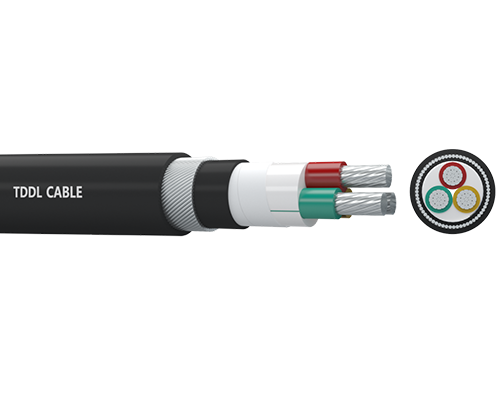

NAYRY (VLV32)

APPLICATION
These power cables are used for electricity supply in low voltage installation systems. They are well adapted to underground use in industrial applications with an additional mechanical protection. They are suitable for laying Indoor, tunnel, cable trench, shaft or buried laying. The cable can withstand mechanical external forces and a certain tensile force, it widely used in transformer stations, electric power plants and industrial plants.

CONSTRUCTION
● Conductor: Aluminum, class 1 or class 2, solid or stranded, circular or circular compacted conductors
● Insulation: Polyvinyl chloride PVC
● Filler: Non-hygroscopic material
● Binder: Non-hygroscopic material
● Inner sheath: Polyvinyl chloride PVC
● Armour: Steel wire
● Binder: Non-hygroscopic material
● Outer sheath: Polyvinyl chloride PVC

MAIN CHARACTERRISTICS
Good electrical and mechanical properties. Resistance to abrasion, moisture and sunlight. Adequate resistance to oil and abrasion.

SPECIFICATION
IEC 60228 Conductors of Insulate Cables
IEC 60502-1 Power Cables with Extruded Insulation and Their Accessories for Rated Voltages from 1kV(Um=1.2kV) up to 30kV(Um=36kV) - Part 1: Cables for Rated Voltages of 1kV (Um=1.2kV) and 3kV(Um=3.6kV)

High reliability

Super high pressure

Less maintenance

Technical Parameter

IEC 60502-1

No. of Cores and Nominal Cross Section	Min. Number of Wires	Nominal Insulation Thickness	Nominal Steel Tape Thickness	Nominal Sheath Thickness	Approx. Overall Diameter	Approx. Weight	Max. D.C. Resistance of Conductor at 20℃
No. × mm²	No.	mm	mm	mm	mm	kg/km	Ω/km
2×2.5	1	0.8	0.8	1.8	14.5	338	12.1
2×4	1	1.0	0.8	1.8	16.3	415	7.41
2×6	1	1.0	1.25	1.8	18.2	592	4.61
2×10	6	1.0	1.25	1.8	20.7	697	3.08
2×16	6	1.0	1.25	1.8	22.3	827	1.91
2×25	6	1.2	1.6	1.8	26.2	1194	1.20
2×35	6	1.2	1.6	1.8	28.2	1366	0.868
2×50	6	1.4	1.6	1.9	31.8	1627	0.641
2×70	12	1.4	2.0	2.0	36.5	2235	0.443
2×95	15	1.6	2.0	2.2	41.3	2753	0.320
2×120	15	1.6	2.0	2.3	44.3	3088	0.253
2×150	15	1.8	2.5	2.4	49.7	4070	0.206
2×185	30	2.0	2.5	2.6	54.1	4666	0.164
2×240	30	2.2	2.5	2.7	59.7	5555	0.125
2×300	30	2.4	2.5	2.9	65.7	6556	0.100
2×400	53	2.6	2.5	3.2	72.7	7762	0.0778
3×2.5	1	0.8	0.8	1.8	15.1	368	12.1
3×4	1	1.0	0.8	1.8	16.9	456	7.41
3×6	1	1.0	1.25	1.8	18.9	643	4.61
3×10	6	1.0	1.25	1.8	21.7	783	3.08
3×16	6	1.0	1.25	1.8	23.4	934	1.91
3×25	6	1.2	1.6	1.8	27.5	1341	1.20
3X35	6	1.2	1.6	1.8	29.7	1544	0.868
3×50	6	1.4	1.6	2.0	33.8	1900	0.641
3×70	12	1.4	2.0	2.1	38.7	2595	0.443
3×95	15	1.6	2.0	2.2	43.7	3216	0.320
No. of Cores and Nominal Cross Section	Min. Number of Wires	Nominal Insulation Thickness	Nominal Steel Tape Thickness	Nominal Sheath Thickness	Approx. Overall Diameter	Approx. Weight	Max. D.C. Resistance of Conductor at 20℃
No. × mm²	No.	mm	mm	mm	mm	kg/km	Ω/km
3×120	15	1.6	2.0	2.3	46.9	3624	0.253
3×150	15	1.8	2.5	2.5	52.8	4749	0.206
3×185	30	2.0	2.5	2.7	57.5	5515	0.164
3×240	30	2.2	2.5	2.9	64.1	6727	0.125
3×300	30	2.4	2.5	3.1	70.2	7846	0.100
3×400	53	2.6	3.15	3.4	79.4	10396	0.0778
4×2.5	1	0.8	0.8	1.8	15.9	410	12.1
4×4	1	1.0	1.25	1.8	18.9	641	7.41
4×6	1	1.0	1.25	1.8	20.2	726	4.61
4×10	6	1.0	1.25	1.8	23.2	885	3.08
4×16	6	1.0	1.6	1.8	25.9	1213	1.91
4×25	6	1.2	1.6	1.8	29.7	1549	1.20
4×35	6	1.2	1.6	1.9	32.3	1819	0.868
4×50	6	1.4	2.0	2.1	38.4	2546	0.641
4×70	12	1.4	2.0	2.2	42.2	3058	0.443
4×95	15	1.6	2.5	2.4	49.3	4283	0.320
4×120	15	1.6	2.5	2.5	52.9	4837	0.253
4×150	15	1.8	2.5	2.7	57.9	5672	0.206
4×185	30	2.0	2.5	2.9	63.5	6690	0.164
4×240	30	2.2	2.5	3.1	70.5	8082	0.125
4×300	30	2.4	3.15	3.3	78.9	10497	0.100
4×400	53	2.6	3.15	3.6	87.2	12502	0.0778
5×2.5	1	0.8	0.8	1.8	16.9	458	12.1
5×4	1	1.0	1.25	1.8	20.1	717	7.41
5×6	1	1.0	1.25	1.8	21.5	823	4.61
5×10	6	1.0	1.6	1.8	25.6	1147	3.08
5×16	6	1.0	1.6	1.8	27.8	1382	1.91
5×25	6	1.2	1.6	1.9	32.3	1798	1.20
5×35	6	1.2	2.0	2.0	36.7	2424	0.868
5×50	6	1.4	2.0	2.2	41.7	2951	0.641
No. of Cores and Nominal Cross Section	Min. Number of Wires	Nominal Insulation Thickness	Nominal Steel Tape Thickness	Nominal Sheath Thickness	Approx. Overall Diameter	Approx. Weight	Max. D.C. Resistance of Conductor at 20℃
No. × mm²	No.	mm	mm	mm	mm	kg/km	Ω/km
5×70	12	1.4	2.0	2.3	45.9	3569	0.443
5×95	15	1.6	2.5	2.5	53.7	4964	0.320
5×120	15	1.6	2.5	2.7	57.8	5633	0.253
5×150	15	1.8	2.5	2.9	63.8	6699	0.206
5×185	30	2.0	2.5	3.0	69.4	7837	0.164
5×240	30	2.2	3.15	3.3	79.0	10517	0.125
5×300	30	2.4	3.15	3.6	86.6	12324	0.100
5×400	53	2.6	3.15	3.9	95.8	14750	0.0778
3×4+1×2.5	1/1	1.0/0.8	1.25	1.8	18.4	612	7.41/12.1
3×6+1×4	1/1	1.0/1.0	1.25	1.8	19.9	712	4.61/7.41
3×10+1×6	6/1	1.0/1.0	1.25	1.8	22.5	850	3.08/4.61
3×16+1×10	6/6	1.0/1.0	1.6	1.8	25.4	1164	1.91/3.08
3×25+1×16	6/6	1.2/1.0	1.6	1.8	28.8	1476	1.20/1.91
3×35+1×16	6/6	1.2/1.0	1.6	1.9	30.8	1667	0.868/1.91
3×50+1×25	6/6	1.4/1.2	2.0	2.0	36.5	2326	0.641/1.20
3×70+1×35	12/6	1.4/1.2	2.0	2.1	40.1	2801	0.443/0.868
3×95+1×50	15/6	1.6/1.4	2.0	2.3	45.5	3491	0.320/0.641
3×120+1×70	15/12	1.6/1.4	2.5	2.5	50.7	4489	0.253/0.443
3×150+1×70	15/12	1.8/1.4	2.5	2.6	54.4	5114	0.206/0.443
3×185+1×95	30/15	2.0/1.6	2.5	2.7	59.5	6008	0.164/0.320
3×240+1×120	30/15	2.2/1.6	2.5	2.9	66.1	7240	0.125/0.253
3×300+1×150	30/15	2.4/1.8	2.5	3.1	72.4	8509	0.100/0.206
3×400+1×185	53/30	2.6/2.0	3.15	3.4	81.7	11193	0.0778/0.164
3×4+2×2.5	1/1	1.0/0.8	1.25	1.8	19.2	661	7.41/12.1
3×6+2×4	1/1	1.0/1.0	1.25	1.8	20.9	776	4.61/7.41
3×10+2×6	6/1	1.0/1.0	1.25	1.8	23.5	934	3.08/4.61
3×16+2×10	6/6	1.0/1.0	1.6	1.8	26.9	1287	1.91/3.08
3×25+2×16	6/6	1.2/1.0	1.6	1.8	30.4	1624	1.20/1.91
3×35+2×16	6/6	1.2/1.0	1.6	1.9	32.2	1811	0.868/1.91
3×50+2×25	6/6	1.4/1.2	2.0	2.1	38.6	2603	0.641/1.20
No. of Cores and Nominal Cross Section	Min. Number of Wires	Nominal Insulation Thickness	Nominal Steel Tape Thickness	Nominal Sheath Thickness	Approx. Overall Diameter	Approx. Weight	Max. D.C. Resistance of Conductor at 20℃
No. × mm²	No.	mm	mm	mm	mm	kg/km	Ω/km
3×70+2×35	12/6	1.4/1.2	2.0	2.2	42.3	3077	0.443/0.868
3×95+2×50	15/6	1.6/1.4	2.5	2.4	49.5	4298	0.320/0.641
3×120+2×70	15/12	1.6/1.4	2.5	2.5	53.6	4977	0.253/0.443
3×150+2×70	15/12	1.8/1.4	2.5	2.7	57.0	5576	0.206/0.443
3×185+2×95	30/15	2.0/1.6	2.5	2.9	63.4	6717	0.164/0.320
3×240+2×120	30/15	2.2/1.6	2.5	3.0	69.5	7948	0.125/0.253
3×300+2×150	30/15	2.4/1.8	2.5	3.3	76.4	9417	0.100/0.206
3×400+2×185	53/30	2.6/2.0	3.15	3.6	86.0	12318	0.0778/0.164
4×4+1×2.5	1/1	1.0/0.8	1.25	1.8	19.7	689	7.41/12.1
4×6+1×4	1/1	1.0/1.0	1.25	1.8	21.2	799	4.61/7.41
4×10+1×6	6/1	1.0/1.0	1.6	1.8	24.9	1106	3.08/4.61
4×16+1×10	6/6	1.0/1.0	1.6	1.8	27.3	1335	1.91/3.08
4×25+1×16	6/6	1.2/1.0	1.6	1.9	31.4	1709	1.20/1.91
4×35+1×16	6/6	1.2/1.0	1.6	1.9	33.6	1943	0.868/1.91
4×50+1×25	6/6	1.4/1.2	2.0	2.1	40.0	2767	0.641/1.20
4×70+1×35	12/6	1.4/1.2	2.0	2.3	44.2	3331	0.443/0.868
4×95+1×50	15/6	1.6/1.4	2.5	2.5	51.7	4660	0.320/0.641
4×120+1×70	15/12	1.6/1.4	2.5	2.6	55.7	5303	0.253/0.443
4×150+1×70	15/12	1.8/1.4	2.5	2.8	60.6	6178	0.206/0.443
4×185+1×95	30/15	2.0/1.6	2.5	2.9	66.3	7279	0.164/0.320
4×240+1×120	30/15	2.2/1.6	2.5	3.2	73.5	8735	0.125/0.253
4×300+1×150	30/15	2.4/1.8	3.15	3.4	82.2	11350	0.100/0.206
4×400+1×185	53/30	2.6/2.0	3.15	3.7	90.8	13504	0.0778/0.164
