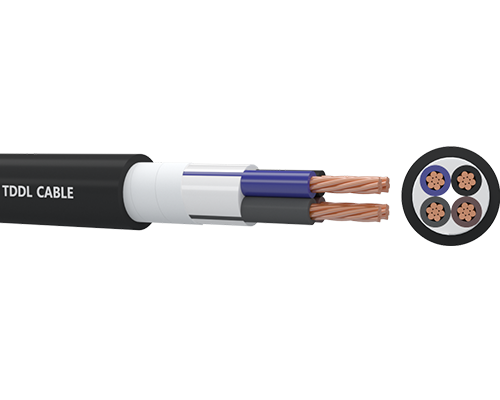

N2XY (KYJV)

APPLICATION
This product is applicable to AC rated voltage U0/U is the control cable for fixed laying in control, monitoring circuit and protection circuit of (U0/U) 0.6/1kV and below.

CONSTRUCTION
● Conductor: Copper, class 1，2, or 5，solid，stranded round or soft conductor
● Insulation: Cross-linked polyethylene XLPE
● Filler: Non-hygroscopic material
● Binder: Non-hygroscopic material
● Outer sheath: Polyvinyl chloride PVC

MAIN CHARACTERISTICS
Good electrical and mechanical properties. Resistance to abrasion, moisture and sunlight. Adequate resistance to oil and abrasion.

SPECIFICATION
IEC 60228 Conductors of Insulate Cables
IEC 60502-1 Power Cables with Extruded Insulation and Their Accessories for Rated Voltages from 1kV(Um=1.2kV) up to 30kV(Um=36kV) - Part 1: Cables for Rated Voltages of 1kV (Um=1.2kV) and 3kV(Um=3.6kV)

High reliability

Super high pressure

Less maintenance

Technical Parameter

IEC 60502-1

No. of Cores and Nominal Cross Section	Conductor Type	Nominal Insulation Thickness	Nominal Copper Tape Thickness	Nominal Sheath Thickness	Approx. Overall Diameter	Approx. Weight	Max. D.C. Resistance of Conductor at 20℃
No. × mm²		mm	mm	mm	mm	kg/km	Ω/km
2×0.5	2	0.6	0.2	1.8	10.9	170	36.0
2×0.75	2	0.6	0.2	1.8	11.3	189	24.5
2×1	2	0.6	0.2	1.8	11.7	202	18.1
2×1.5	2	0.7	0.2	1.8	12.7	240	12.1
2×2.5	2	0.7	0.2	1.8	13.5	275	7.41
2×4	2	0.7	0.2	1.8	14.6	331	4.61
2×6	2	0.7	0.2	1.8	15.7	390	3.08
2×10	2	0.7	0.2	1.8	17.5	525	1.83
3×0.5	2	0.6	0.2	1.8	11.2	187	36.0
3×0.75	2	0.6	0.2	1.8	11.7	212	24.5
3×1	2	0.6	0.2	1.8	12.1	228	18.1
3×1.5	2	0.7	0.2	1.8	13.2	264	12.1
3×2.5	2	0.7	0.2	1.8	14.1	311	7.41
3×4	2	0.7	0.2	1.8	15.2	383	4.61
3×6	2	0.7	0.2	1.8	16.4	469	3.08
3×10	2	0.7	0.2	1.8	18.3	643	1.83
4×0.5	2	0.6	0.2	1.8	11.8	200	36.0
4×0.75	2	0.6	0.2	1.8	12.3	222	24.5
4×1	2	0.6	0.2	1.8	12.7	252	18.1
4×1.5	2	0.7	0.2	1.8	13.9	306	12.1
4×2.5	2	0.7	0.2	1.8	15.0	365	7.41
4×4	2	0.7	0.2	1.8	16.3	457	4.61
4×6	2	0.7	0.2	1.8	17.6	568	3.08
4×10	2	0.7	0.2	1.8	19.7	805	1.83
5×0.5	2	0.6	0.2	1.8	12.4	219	36.0
5×0.75	2	0.6	0.2	1.8	12.9	258	24.5
5×1	2	0.6	0.2	1.8	13.4	281	18.1
5×1.5	2	0.7	0.2	1.8	14.8	341	12.1
5×2.5	2	0.7	0.2	1.8	15.9	417	7.41
5×4	2	0.7	0.2	1.8	17.4	528	4.61
5×6	2	0.7	0.2	1.8	18.8	649	3.08
5×10	2	0.7	0.2	1.8	21.3	943	1.83
6×0.5	2	0.6	0.2	1.8	13.0	240	36.0
6×0.75	2	0.6	0.2	1.8	13.6	269	24.5

No. of Cores and Nominal Cross Section	Conductor Type	Nominal Insulation Thickness	Nominal Copper Tape Thickness	Nominal Sheath Thickness	Approx. Overall Diameter	Approx. Weight	Max. D.C. Resistance of Conductor at 20℃
No. × mm²		mm	mm	mm	mm	kg/km	Ω/km
6×1	2	0.6	0.2	1.8	14.2	297	18.1
6×1.5	2	0.7	0.2	1.8	15.7	366	12.1
6×2.5	2	0.7	0.2	1.8	16.9	449	7.41
6×4	2	0.7	0.2	1.8	18.6	574	4.61
6×6	2	0.7	0.2	1.8	20.2	726	3.08
6×10	2	0.7	0.2	1.8	22.9	1016	1.83
7×0.5	2	0.6	0.2	1.8	13.0	245	36.0
7×0.75	2	0.6	0.2	1.8	13.6	277	24.5
7×1	2	0.6	0.2	1.8	14.2	307	18.1
7×1.5	2	0.7	0.2	1.8	15.7	382	12.1
7×2.5	2	0.7	0.2	1.8	16.9	474	7.41
7×4	2	0.7	0.2	1.8	18.6	613	4.61
7×6	2	0.7	0.2	1.8	20.2	775	3.08
7×10	2	0.7	0.2	1.8	22.9	1097	1.83
8×0.5	2	0.6	0.2	1.8	13.9	274	36.0
8×0.75	2	0.6	0.2	1.8	14.7	311	24.5
8×1	2	0.6	0.2	1.8	15.3	346	18.1
8×1.5	2	0.7	0.2	1.8	17.0	432	12.1
8×2.5	2	0.7	0.2	1.8	18.5	539	7.41
8×4	2	0.7	0.2	1.8	20.3	700	4.61
8×6	2	0.7	0.2	1.8	22.2	885	3.08
8×10	2	0.7	0.2	1.8	25.3	1260	1.83
9×0.5	2	0.6	0.2	1.8	14.7	299	36.0
9×0.75	2	0.6	0.2	1.8	15.5	342	24.5
9×1	2	0.6	0.2	1.8	16.2	381	18.1
9×1.5	2	0.7	0.2	1.8	18.1	477	12.1
9×2.5	2	0.7	0.2	1.8	19.7	598	7.41
9×4	2	0.7	0.2	1.8	21.7	778	4.61
9×6	2	0.7	0.2	1.8	23.8	993	3.08
9×10	2	0.7	0.2	1.8	27.2	1418	1.83
10×0.5	2	0.6	0.2	1.8	15.1	314	36.0
10×0.75	2	0.6	0.2	1.8	15.9	359	24.5
10×1	2	0.6	0.2	1.8	16.7	402	18.1
10×1.5	2	0.7	0.2	1.8	18.7	506	12.1
10×2.5	2	0.7	0.2	1.8	20.3	637	7.41
10×4	2	0.7	0.2	1.8	22.5	834	4.61

No. of Cores and Nominal Cross Section	Conductor Type	Nominal Insulation Thickness	Nominal Copper Tape Thickness	Nominal Sheath Thickness	Approx. Overall Diameter	Approx. Weight	Max. D.C. Resistance of Conductor at 20℃
No. × mm²		mm	mm	mm	mm	kg/km	Ω/km
10×6	2	0.7	0.2	1.8	24.7	1067	3.08
10×10	2	0.7	0.2	1.8	28.3	1525	1.83
12×0.5	2	0.6	0.2	1.8	15.4	331	36.0
12×0.75	2	0.6	0.2	1.8	16.3	382	24.5
12×1	2	0.6	0.2	1.8	17.1	431	18.1
12×1.5	2	0.7	0.2	1.8	19.1	549	12.1
12×2.5	2	0.7	0.2	1.8	20.9	699	7.41
12×4	2	0.7	0.2	1.8	23.1	926	4.61
12×6	2	0.7	0.2	1.8	25.4	1193	3.08
14×0.5	2	0.6	0.2	1.8	16.0	356	36.0
14×0.75	2	0.6	0.2	1.8	16.9	414	24.5
14×1	2	0.6	0.2	1.8	17.7	469	18.1
14×1.5	2	0.7	0.2	1.8	19.9	603	12.1
14×2.5	2	0.7	0.2	1.8	21.7	773	7.41
14×4	2	0.7	0.2	1.8	24.1	1034	4.61
14×6	2	0.7	0.2	1.8	26.5	1341	3.08
16×0.5	2	0.6	0.2	1.8	16.6	386	36.0
16×0.75	2	0.6	0.2	1.8	17.6	451	24.5
16×1	2	0.6	0.2	1.8	18.4	512	18.1
16×1.5	2	0.7	0.2	1.8	20.8	662	12.1
16×2.5	2	0.7	0.2	1.8	22.7	855	7.41
16×4	2	0.7	0.2	1.8	25.3	1150	4.61
16×6	2	0.7	0.2	1.8	27.8	1497	3.08
19×0.5	2	0.6	0.2	1.8	17.2	418	36.0
19×0.75	2	0.6	0.2	1.8	18.3	493	24.5
19×1	2	0.6	0.2	1.8	19.2	564	18.1
19×1.5	2	0.7	0.2	1.8	21.7	735	12.1
19×2.5	2	0.7	0.2	1.8	23.8	958	7.41
19×4	2	0.7	0.2	1.8	26.5	1301	4.61
19×6	2	0.7	0.2	1.9	29.4	1719	3.08
20×0.5	2	0.6	0.2	1.8	17.9	440	36.0
20×0.75	2	0.6	0.2	1.8	19.0	518	24.5
20×1	2	0.6	0.2	1.8	20.0	593	18.1
20×1.5	2	0.7	0.2	1.8	22.6	775	12.1
20×2.5	2	0.7	0.2	1.8	24.9	1010	7.41
20×4	2	0.7	0.2	1.8	27.8	1371	4.61

No. of Cores and Nominal Cross Section	Conductor Type	Nominal Insulation Thickness	Nominal Copper Tape Thickness	Nominal Sheath Thickness	Approx. Overall Diameter	Approx. Weight	Max. D.C. Resistance of Conductor at 20℃
No. × mm²		mm	mm	mm	mm	kg/km	Ω/km
20×6	2	0.7	0.2	1.9	30.8	1813	3.08
21×0.5	2	0.6	0.2	1.8	17.9	447	36.0
21×0.75	2	0.6	0.2	1.8	19.0	528	24.5
21×1	2	0.6	0.2	1.8	20.0	606	18.1
21×1.5	2	0.7	0.2	1.8	22.6	794	12.1
21×2.5	2	0.7	0.2	1.8	24.9	1039	7.41
21×4	2	0.7	0.2	1.8	27.8	1415	4.61
21×6	2	0.7	0.2	1.9	30.8	1875	3.08
22×0.5	2	0.6	0.2	1.8	18.6	469	36.0
22×0.75	2	0.6	0.2	1.8	19.8	554	24.5
22×1	2	0.6	0.2	1.8	20.8	637	18.1
22×1.5	2	0.7	0.2	1.8	23.7	834	12.1
22×2.5	2	0.7	0.2	1.8	26.0	1091	7.41
22×4	2	0.7	0.2	1.9	29.3	1499	4.61
22×6	2	0.7	0.2	2.0	32.9	1996	3.08
24×0.5	2	0.6	0.2	1.8	19.3	503	36.0
24×0.75	2	0.6	0.2	1.8	20.6	595	24.5
24×1	2	0.6	0.2	1.8	21.6	684	18.1
24×1.5	2	0.7	0.2	1.8	24.6	898	12.1
24×2.5	2	0.7	0.2	1.8	27.2	1178	7.41
24×4	2	0.7	0.2	1.9	30.6	1623	4.61
24×6	2	0.7	0.2	2.0	34.7	2202	3.08
27×0.5	2	0.6	0.2	1.8	19.6	526	36.0
27×0.75	2	0.6	0.2	1.8	20.9	628	24.5
27×1	2	0.6	0.2	1.8	22.0	725	18.1
27×1.5	2	0.7	0.2	1.8	25.1	959	12.1
27×2.5	2	0.7	0.2	1.8	27.7	1268	7.41
27×4	2	0.7	0.2	1.9	31.2	1758	4.61
27×6	2	0.7	0.2	2.0	35.4	2392	3.08
30×0.5	2	0.6	0.2	1.8	20.2	560	36.0
30×0.75	2	0.6	0.2	1.8	21.5	670	24.5
30×1	2	0.6	0.2	1.8	22.7	777	18.1
30×1.5	2	0.7	0.2	1.8	25.9	1033	12.1
30×2.5	2	0.7	0.2	1.8	28.6	1372	7.41
30×4	2	0.7	0.2	2.0	32.7	1938	4.61
30×6	2	0.7	0.5	2.1	38.0	2977	3.08

No. of Cores and Nominal Cross Section	Conductor Type	Nominal Insulation Thickness	Nominal Copper Tape Thickness	Nominal Sheath Thickness	Approx. Overall Diameter	Approx. Weight	Max. D.C. Resistance of Conductor at 20℃
No. × mm²		mm	mm	mm	mm	kg/km	Ω/km
33×0.5	2	0.6	0.2	1.8	20.8	597	36.0
33×0.75	2	0.6	0.2	1.8	22.2	717	24.5
33×1	2	0.6	0.2	1.8	23.4	833	18.1
33×1.5	2	0.7	0.2	1.8	26.7	1111	12.1
33×2.5	2	0.7	0.2	1.9	29.7	1496	7.41
33×4	2	0.7	0.2	2.0	34.3	2135	4.61
33×6	2	0.7	0.5	2.2	39.5	3229	3.08
37×0.5	2	0.6	0.2	1.8	21.4	636	36.0
37×0.75	2	0.6	0.2	1.8	22.9	769	24.5
37×1	2	0.6	0.2	1.8	24.1	898	18.1
37×1.5	2	0.7	0.2	1.8	27.6	1204	12.1
37×2.5	2	0.7	0.2	1.9	30.8	1628	7.41
37×4	2	0.7	0.2	2.1	35.7	2349	4.61
37×6	2	0.7	0.5	2.2	40.8	3520	3.08
44×0.5	2	0.6	0.2	1.8	23.5	736	36.0
44×0.75	2	0.6	0.2	1.8	25.2	892	24.5
44×1	2	0.6	0.2	1.8	26.6	1044	18.1
44×1.5	2	0.7	0.2	1.9	30.8	1418	12.1
44×2.5	2	0.7	0.2	2.0	35.1	1973	7.41
44×4	2	0.7	0.5	2.2	41.0	3159	4.61
44×6	2	0.7	0.5	2.4	45.7	4162	3.08
48×0.5	2	0.6	0.2	1.8	23.8	766	36.0
48×0.75	2	0.6	0.2	1.8	25.5	935	24.5
48×1	2	0.6	0.2	1.8	27.0	1098	18.1
48×1.5	2	0.7	0.2	1.9	31.3	1500	12.1
48×2.5	2	0.7	0.2	2.1	35.8	2108	7.41
48×4	2	0.7	0.5	2.2	41.6	3346	4.61
48×6	2	0.7	0.5	2.4	46.8	4466	3.08
52×0.5	2	0.6	0.2	1.8	24.4	807	36.0
52×0.75	2	0.6	0.2	1.8	26.1	988	24.5
52×1	2	0.6	0.2	1.8	27.6	1163	18.1
52×1.5	2	0.7	0.2	2.0	32.5	1619	12.1
52×2.5	2	0.7	0.5	2.1	37.9	2598	7.41
52×4	2	0.7	0.5	2.3	42.8	3575	4.61
52×6	2	0.7	0.5	2.4	48.0	4756	3.08
61×0.5	2	0.6	0.2	1.8	25.6	898	36.0

No. of Cores and Nominal Cross Section	Conductor Type	Nominal Insulation Thickness	Nominal Copper Tape Thickness	Nominal Sheath Thickness	Approx. Overall Diameter	Approx. Weight	Max. D.C. Resistance of Conductor at 20℃
No. × mm²		mm	mm	mm	mm	kg/km	Ω/km
61×0.5	2	0.6	0.2	1.8	25.6	898	36.0
61×0.75	2	0.6	0.2	1.8	27.5	1107	24.5
61×1	2	0.6	0.2	1.9	29.3	1323	18.1
61×1.5	2	0.7	0.2	2.0	34.7	1868	12.1
61×2.5	2	0.7	0.5	2.2	40.1	2942	7.41
61×4	2	0.7	0.5	2.4	45.4	4070	4.61
61×6	2	0.7	0.5	2.5	50.8	5434	3.08
