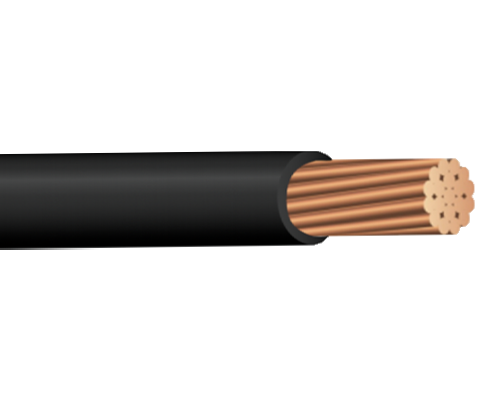

RHH/RHW-2/USE-2 COPPER CONDUCTOR

APPLICATION:
Type RHH or RHW-2 or USE-2 conductors are used with conduit as specified in the National Electrical Code. When used as Type USE-2, conductors are suitable for use as underground service entrance conductors for direct burial at conductor temperatures not to exceed 90°C. When used as RHW-2 or USE-2, conductor temperatures shall not exceed 90°C in wet or dry locations. Voltage rating for RHW-2 or RHH or USE-2 conductors is 600 volts.

CONSTRUCTION
Type RHH or RHW-2 or USE-2 copper conductors are annealed (soft) copper. Insulation is an abrasion, moisture, heat, and sunlight resistant black crosslinked polyethylene (XLP). An optional CT rated product is available upon request for sizes 1/0 and larger.

FEATURES:
● Conductor for reduced diameter
● General purpose use in construction:
● Residential
● Commercial
● Institutional
● Industrial construction

STANDARDS & REFERENCES：
Type RHH or RHW-2 or USE-2 conductors comply with the following:
• ASTM - B3, B8 (7, 19, 37, 61 Strands), B787 (19 Wire Combination Unilay Strand)
• UL 44 for RHH or RHW-2
• UL 854 for USE-2
• National Electrical Code, NFPA 70, 2011 Edition
• NEMA WC-70 Construction Requirements
• RoHS/Reach Compliant
