ACSR-OC/ACSR/AW-OC Cable (KS C 3138)

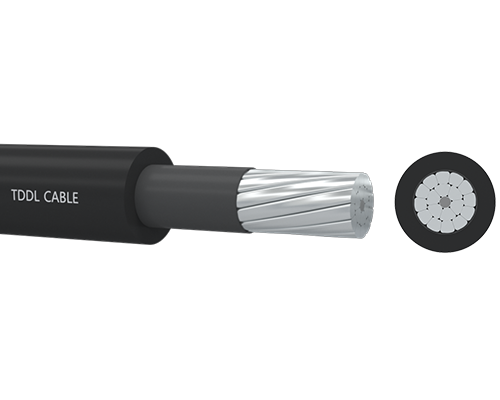

The conductors are stranded,circular compressed ACSR-OC or ACSR/AW-OC. The conductor screen is the extruded Semi-conducting conductor shield in Black. The Insulation is cross-linked polyethylene (XLPE) in Black with Weather or UV resistant. The Insulation rated for 90°C normal service temperature.

Quote Now

Application
Aerial Insulated Cables with voltages from 6.6kV - 22.9kV of ACSR-OC, ACSR/AW-OC.The products primarily used for the distribution of electrical energy under normal conditions of overhead (aerial) installations. The conductors must be installed on insulators and/or spacers adequate for the service voltage. The user may want to give consideration to the dielectric compatibility of the covering, insulator, spacer and etc.

Description
The conductors are stranded,circular compressed ACSR-OC or ACSR/AW-OC. The conductor screen is the extruded Semi-conducting conductor shield in Black. The Insulation is cross-linked polyethylene (XLPE) in Black with Weather or UV resistant. The Insulation rated for 90°C normal service temperature.

Specifications
• GB/T 14049 (Equal to IEC 60502-2) Aerial Insulated Cables For Rated Voltage of 10kV
• KS C 3138 ACSR outdoor cross-linked polyethylene insulated wires for 6.6 kV

Note: SB : Smooth body

High reliability

Super high pressure

Less maintenance

Technical Parameter

IEC 60502-2; KS C 3138 IEC 60502-2

6.6kV ACSR-OC Aerial Insulated Cables

Size (mm2)	No. and Dia. of Wires		Conductor Diameter	Insulation Thickness	Cable Diameter	Rated Strength	Weight
	AL	St	Conductor Diameter	Insulation Thickness	Cable Diameter	Rated Strength	Weight
	No.	No. /mm	mm	mm	mm	kgf	kg/km
6.6 kV ACSR-OC/XLPE
32	6/SB	1/2.6	7.2	2.0	11.2	1090	185
58	6/SB	1/3.5	9.7	2.5	14.7	1900	325
95	6/SB	1/3.5	12.0	2.5	17.0	2360	455

22.9kV ACSR-OC Aerial Insulated Cables

Size (mm2)	No. and Dia. of wires		Conductor Diameter	Insulation Thickness	Cable Diameter	Rated Strength	Weight
	AL	St	Conductor Diameter	Insulation Thickness	Cable Diameter	Rated Strength	Weight
	No.	No. /mm	mm	mm	mm	kgf	kg/km
22.9 kV ACSR-OC/XLPE
32	6/SB	1/2.6	7.2	3.0	13.2	1090	215
58	6/SB	1/3.5	9.7	3.0	15.7	1900	340
95	6/SB	1/3.5	12.0	3.5	19.0	2360	540
160	18/SB	1/3.2	15.4	4.0	23.4	3080	740

6.6kV ACSR/AW-OC Aerial Insulated Cables

Size (mm2)	No. and Dia. of Wires		Conductor Diameter	Insulation Thickness	Cable Diameter	Rated Strength	Weight
	AL	St	Conductor Diameter	Insulation Thickness	Cable Diameter	Rated Strength	Weight
	No.	No. /mm	mm	mm	mm	kgf	kg/km
6.6 kV ACSR/AW-OC/XLPE
32	6/SB	1/2.6	7.2	2.0	11.2	1090	180
58	6/SB	1/3.5	9.7	2.5	14.7	1900	315
95	6/SB	1/3.5	12.0	2.5	17.0	2360	445

22.9kV ACSR/AW-OC Aerial Insulated Cables

Size (mm2)	No. and Dia. of Wires		Conductor Diameter	Insulation Thickness	Cable Diameter	Rated Strength	Weight
	AL	St	Conductor Diameter	Insulation Thickness	Cable Diameter	Rated Strength	Weight
	No.	No. /mm	mm	mm	mm	kgf	kg/km
22.9 kV ACSR/AW-OC/XLPE
32	6/SB	1/2.6	7.2	3.0	13.2	1090	210
58	6/SB	1/3.5	9.7	3.0	15.7	1900	330
95	6/SB	1/3.5	12.0	3.5	19.0	2360	530
160	18/SB	1/3.2	15.4	4.0	23.4	3080	730
240	18/SB	1/4.0	18.9	4.0	27.0	4500	1040

22.9kV ACSR/AW-OC Aerial Insulated Cables

Size (mm2)	No. and Dia. of Wires		Conductor Diameter	Insulation Thickness	Cable Diameter	Rated Strength	Weight
	AL	St	Conductor Diameter	Insulation Thickness	Cable Diameter	Rated Strength	Weight
	No.	No. /mm	mm	mm	mm	kgf	kg/km
22.9 kV ACSR/AW-OC/XLPE
32	6/SB	1/2.6	7.2	3.0	13.2	1090	210
58	6/SB	1/3.5	9.7	3.0	15.7	1900	330
95	6/SB	1/3.5	12.0	3.5	19.0	2360	530
160	18/SB	1/3.2	15.4	4.0	23.4	3080	730
240	18/SB	1/4.0	18.9	4.0	27.0	4500	1040
