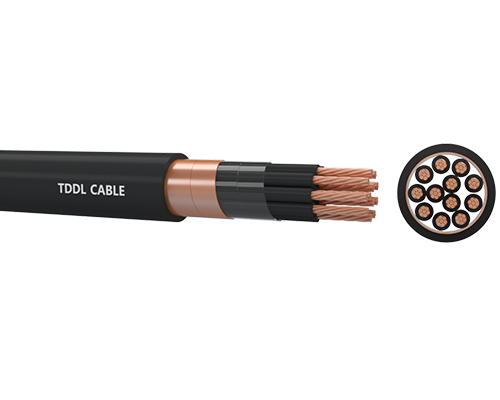

N2XSY (KYJVP2)

APPLICATION
This product is applicable to AC rated voltage U0/U is the control cable for fixed laying in control, monitoring circuit and protection circuit of (U0/U) 0.6/1kV and below.

CONSTRUCTION
● Conductor: Copper, class 1, 2, solid, stranded round conductor
● Insulation: Cross-linked polyethylene XLPE
● Filler: Non-hygroscopic material
● Binder: Non-hygroscopic material
● Inner sheath: Polyvinyl chloride PVC
● Armour: Galvanized steel tape
● Outer sheath: Polyvinyl chloride PVC

MAIN CHARACTERISTICS
Good electrical and mechanical properties. Resistance to abrasion, moisture and sunlight. Adequate resistance to oil and abrasion.

SPECIFICATION
IEC 60228 Conductors of Insulate Cables
IEC 60502-1 Power Cables with Extruded Insulation and Their Accessories for Rated Voltages from 1kV(Um=1.2kV) up to 30kV(Um=36kV) - Part 1: Cables for Rated Voltages of 1kV (Um=1.2kV) and 3kV(Um=3.6kV)

High reliability

Super high pressure

Less maintenance

Technical Parameter

IEC 60502-1

No. of Cores and Nominal Cross Section	Conductor Type	Nominal Insulation Thickness	Nominal Copper Tape Thickness	Nominal Sheath Thickness	Approx. Overall Diameter	Approx. Weight	Max. D.C. Resistance of Conductor at 20℃
No. × mm²		mm	mm	mm	mm	kg/km	Ω/km
2×0.5	2	0.6	0.05	1.8	8.3	81	36.0
2×0.75	2	0.6	0.05	1.8	8.7	96	24.5
2×1	2	0.6	0.05	1.8	9.0	106	18.1
2×1.5	2	0.7	0.05	1.8	10.0	133	12.1
2×2.5	2	0.7	0.05	1.8	10.9	160	7.41
2×4	2	0.7	0.05	1.8	12.0	205	4.61
2×6	2	0.7	0.05	1.8	13.0	252	3.08
2×10	2	0.7	0.05	1.8	14.8	369	1.83
3×0.5	2	0.6	0.05	1.8	8.6	95	36.0
3×0.75	2	0.6	0.05	1.8	9.0	115	24.5
3×1	2	0.6	0.05	1.8	9.4	128	18.1
3×1.5	2	0.7	0.05	1.8	10.5	153	12.1
3×2.5	2	0.7	0.05	1.8	11.4	190	7.41
3×4	2	0.7	0.05	1.8	12.6	251	4.61
3×6	2	0.7	0.05	1.8	13.7	324	3.08
3×10	2	0.7	0.05	1.8	15.7	478	1.83
4×0.5	2	0.6	0.05	1.8	9.1	102	36.0
4×0.75	2	0.6	0.05	1.8	9.6	119	24.5
4×1	2	0.6	0.05	1.8	10.1	145	18.1
4×1.5	2	0.7	0.05	1.8	11.3	187	12.1
4×2.5	2	0.7	0.05	1.8	12.3	235	7.41
4×4	2	0.7	0.05	1.8	13.6	314	4.61
4×6	2	0.7	0.05	1.8	14.9	412	3.08
4×10	2	0.7	0.05	1.8	17.1	626	1.83
5×0.5	2	0.6	0.05	1.8	9.7	116	36.0
5×0.75	2	0.6	0.05	1.8	10.3	148	24.5
5×1	2	0.6	0.05	1.8	10.8	167	18.1
5×1.5	2	0.7	0.05	1.8	12.1	213	12.1
5×2.5	2	0.7	0.05	1.8	13.3	277	7.41
5×4	2	0.7	0.05	1.8	14.7	373	4.61
5×6	2	0.7	0.05	1.8	16.2	480	3.08
5×10	2	0.7	0.05	1.8	18.6	749	1.83
6×0.5	2	0.6	0.05	1.8	10.4	130	36.0
6×0.75	2	0.6	0.05	1.8	11.0	153	24.5

No. of Cores and Nominal Cross Section	Conductor Type	Nominal Insulation Thickness	Nominal Copper Tape Thickness	Nominal Sheath Thickness	Approx. Overall Diameter	Approx. Weight	Max. D.C. Resistance of Conductor at 20℃
No. × mm²		mm	mm	mm	mm	kg/km	Ω/km
6×1	2	0.6	0.05	1.8	11.5	175	18.1
6×1.5	2	0.7	0.05	1.8	13.0	229	12.1
6×2.5	2	0.7	0.05	1.8	14.3	299	7.41
6×4	2	0.7	0.05	1.8	15.9	407	4.61
6×6	2	0.7	0.05	1.8	17.5	543	3.08
6×10	2	0.7	0.05	1.8	20.2	806	1.83
7×0.5	2	0.6	0.05	1.8	10.4	134	36.0
7×0.75	2	0.6	0.05	1.8	11.0	160	24.5
7×1	2	0.6	0.05	1.8	11.5	185	18.1
7×1.5	2	0.7	0.05	1.8	13.0	245	12.1
7×2.5	2	0.7	0.05	1.8	14.3	324	7.41
7×4	2	0.7	0.05	1.8	15.9	447	4.61
7×6	2	0.7	0.05	1.8	17.5	593	3.08
7×10	2	0.7	0.05	1.8	20.2	887	1.83
8×0.5	2	0.6	0.05	1.8	11.3	154	36.0
8×0.75	2	0.6	0.05	1.8	12.0	184	24.5
8×1	2	0.6	0.05	1.8	12.6	213	18.1
8×1.5	2	0.7	0.05	1.8	14.4	282	12.1
8×2.5	2	0.7	0.05	1.8	15.8	373	7.41
8×4	2	0.7	0.05	1.8	17.7	516	4.61
8×6	2	0.7	0.05	1.8	19.5	682	3.08
8×10	2	0.7	0.05	1.8	22.6	1025	1.83
9×0.5	2	0.6	0.05	1.8	12.0	171	36.0
9×0.75	2	0.6	0.05	1.8	12.8	207	24.5
9×1	2	0.6	0.05	1.8	13.5	239	18.1
9×1.5	2	0.7	0.05	1.8	15.4	316	12.1
9×2.5	2	0.7	0.05	1.8	17.0	420	7.41
9×4	2	0.7	0.05	1.8	19.1	580	4.61
9×6	2	0.7	0.05	1.8	21.1	774	3.08
9×10	2	0.7	0.05	1.8	24.5	1164	1.83
10×0.5	2	0.6	0.05	1.8	12.5	183	36.0
10×0.75	2	0.6	0.05	1.8	13.3	219	24.5
10×1	2	0.6	0.05	1.8	14.0	255	18.1
10×1.5	2	0.7	0.05	1.8	16.0	339	12.1
10×2.5	2	0.7	0.05	1.8	17.7	452	7.41
10×4	2	0.7	0.05	1.8	19.9	628	4.61

No. of Cores and Nominal Cross Section	Conductor Type	Nominal Insulation Thickness	Nominal Copper Tape Thickness	Nominal Sheath Thickness	Approx. Overall Diameter	Approx. Weight	Max. D.C. Resistance of Conductor at 20℃
No. × mm²		mm	mm	mm	mm	kg/km	Ω/km
10×6	2	0.7	0.05	1.8	22.0	839	3.08
10×10	2	0.7	0.05	1.8	25.6	1260	1.83
12×0.5	2	0.6	0.05	1.8	12.8	196	36.0
12×0.75	2	0.6	0.05	1.8	13.7	238	24.5
12×1	2	0.6	0.05	1.8	14.4	279	18.1
12×1.5	2	0.7	0.05	1.8	16.5	377	12.1
12×2.5	2	0.7	0.05	1.8	18.2	509	7.41
12×4	2	0.7	0.05	1.8	20.5	713	4.61
12×6	2	0.7	0.05	1.8	22.7	958	3.08
14×0.5	2	0.6	0.05	1.8	13.3	216	36.0
14×0.75	2	0.6	0.05	1.8	14.2	265	24.5
14×1	2	0.6	0.05	1.8	15.0	312	18.1
14×1.5	2	0.7	0.05	1.8	17.2	423	12.1
14×2.5	2	0.7	0.05	1.8	19.1	575	7.41
14×4	2	0.7	0.05	1.8	21.5	811	4.61
14×6	2	0.7	0.05	1.8	23.9	1094	3.08
16×0.5	2	0.6	0.05	1.8	13.9	240	36.0
16×0.75	2	0.6	0.05	1.8	14.9	294	24.5
16×1	2	0.6	0.05	1.8	15.8	347	18.1
16×1.5	2	0.7	0.05	1.8	18.1	473	12.1
16×2.5	2	0.7	0.05	1.8	20.1	646	7.41
16×4	2	0.7	0.05	1.8	22.6	915	4.61
16×6	2	0.7	0.05	1.8	25.2	1236	3.08
19×0.5	2	0.6	0.05	1.8	14.6	266	36.0
19×0.75	2	0.6	0.05	1.8	15.6	329	24.5
19×1	2	0.6	0.05	1.8	16.5	391	18.1
19×1.5	2	0.7	0.05	1.8	19.0	537	12.1
19×2.5	2	0.7	0.05	1.8	21.1	739	7.41
19×4	2	0.7	0.05	1.8	23.8	1054	4.61
19×6	2	0.7	0.05	1.8	26.5	1432	3.08
20×0.5	2	0.6	0.05	1.8	15.2	280	36.0
20×0.75	2	0.6	0.05	1.8	16.4	347	24.5
20×1	2	0.6	0.05	1.8	17.3	413	18.1
20×1.5	2	0.7	0.05	1.8	20.0	567	12.1
20×2.5	2	0.7	0.05	1.8	22.2	779	7.41
20×4	2	0.7	0.05	1.8	25.1	1112	4.61

No. of Cores and Nominal Cross Section	Conductor Type	Nominal Insulation Thickness	Nominal Copper Tape Thickness	Nominal Sheath Thickness	Approx. Overall Diameter	Approx. Weight	Max. D.C. Resistance of Conductor at 20℃
No. × mm²		mm	mm	mm	mm	kg/km	Ω/km
20×6	2	0.7	0.05	1.8	28.0	1510	3.08
21×0.5	2	0.6	0.05	1.8	15.2	287	36.0
21×0.75	2	0.6	0.05	1.8	16.4	357	24.5
21×1	2	0.6	0.05	1.8	17.3	426	18.1
21×1.5	2	0.7	0.05	1.8	20.0	586	12.1
21×2.5	2	0.7	0.05	1.8	22.2	808	7.41
21×4	2	0.7	0.05	1.8	25.1	1155	4.61
21×6	2	0.7	0.05	1.8	28.0	1572	3.08
22×0.5	2	0.6	0.05	1.8	16.0	302	36.0
22×0.75	2	0.6	0.05	1.8	17.1	375	24.5
22×1	2	0.6	0.05	1.8	18.2	447	18.1
22×1.5	2	0.7	0.05	1.8	21.0	616	12.1
22×2.5	2	0.7	0.05	1.8	23.4	849	7.41
22×4	2	0.7	0.05	1.8	26.4	1213	4.61
22×6	2	0.7	0.05	1.9	29.7	1663	3.08
24×0.5	2	0.6	0.05	1.8	16.7	329	36.0
24×0.75	2	0.6	0.05	1.8	17.9	409	24.5
24×1	2	0.6	0.05	1.8	19.0	486	18.1
24×1.5	2	0.7	0.05	1.8	22.0	669	12.1
24×2.5	2	0.7	0.05	1.8	24.5	925	7.41
24×4	2	0.7	0.05	1.8	27.8	1323	4.61
24×6	2	0.7	0.05	1.9	31.2	1817	3.08
27×0.5	2	0.6	0.05	1.8	17.0	349	36.0
27×0.75	2	0.6	0.05	1.8	18.3	438	24.5
27×1	2	0.6	0.05	1.8	19.4	524	18.1
27×1.5	2	0.7	0.05	1.8	22.4	727	12.1
27×2.5	2	0.7	0.05	1.8	25.0	1009	7.41
27×4	2	0.7	0.05	1.8	28.3	1452	4.61
27×6	2	0.7	0.05	1.9	31.9	1998	3.08
30×0.5	2	0.6	0.05	1.8	17.5	377	36.0
30×0.75	2	0.6	0.05	1.8	18.9	474	24.5
30×1	2	0.6	0.05	1.8	20.0	569	18.1
30×1.5	2	0.7	0.05	1.8	23.2	792	12.1
30×2.5	2	0.7	0.05	1.8	25.9	1105	7.41
30×4	2	0.7	0.05	1.9	29.6	1607	4.61
30×6	2	0.7	0.05	2.0	33.2	2212	3.08

No. of Cores and Nominal Cross Section	Conductor Type	Nominal Insulation Thickness	Nominal Copper Tape Thickness	Nominal Sheath Thickness	Approx. Overall Diameter	Approx. Weight	Max. D.C. Resistance of Conductor at 20℃
No. × mm²		mm	mm	mm	mm	kg/km	Ω/km
33×0.5	2	0.6	0.05	1.8	18.1	408	36.0
33×0.75	2	0.6	0.05	1.8	19.5	514	24.5
33×1	2	0.6	0.05	1.8	20.7	618	18.1
33×1.5	2	0.7	0.05	1.8	24.1	862	12.1
33×2.5	2	0.7	0.05	1.8	26.9	1204	7.41
33×4	2	0.7	0.05	1.9	30.7	1756	4.61
33×6	2	0.7	0.05	2.0	34.5	2419	3.08
37×0.5	2	0.6	0.05	1.8	18.8	441	36.0
37×0.75	2	0.6	0.05	1.8	20.2	559	24.5
37×1	2	0.6	0.05	1.8	21.5	675	18.1
37×1.5	2	0.7	0.05	1.8	25.0	945	12.1
37×2.5	2	0.7	0.05	1.8	27.9	1326	7.41
37×4	2	0.7	0.05	2.0	32.1	1954	4.61
37×6	2	0.7	0.05	2.1	36.1	2694	3.08
44×0.5	2	0.6	0.05	1.8	20.9	519	36.0
44×0.75	2	0.6	0.05	1.8	22.5	659	24.5
44×1	2	0.6	0.05	1.8	24.0	796	18.1
44×1.5	2	0.7	0.05	1.8	28.0	1116	12.1
44×2.5	2	0.7	0.05	1.9	31.5	1583	7.41
44×4	2	0.7	0.05	2.1	36.3	2330	4.61
44×6	2	0.7	0.05	2.2	40.8	3214	3.08
48×0.5	2	0.6	0.05	1.8	21.2	547	36.0
48×0.75	2	0.6	0.05	1.8	22.9	698	24.5
48×1	2	0.6	0.05	1.8	24.3	846	18.1
48×1.5	2	0.7	0.05	1.8	28.4	1192	12.1
48×2.5	2	0.7	0.05	2.0	32.2	1711	7.41
48×4	2	0.7	0.05	2.1	36.8	2503	4.61
48×6	2	0.7	0.05	2.2	41.4	3458	3.08
52×0.5	2	0.6	0.05	1.8	21.7	582	36.0
52×0.75	2	0.6	0.05	1.8	23.5	744	24.5
52×1	2	0.6	0.05	1.8	25.0	905	18.1
52×1.5	2	0.7	0.05	1.9	29.4	1291	12.1
52×2.5	2	0.7	0.05	2.0	33.1	1836	7.41
52×4	2	0.7	0.05	2.1	37.9	2691	4.61
52×6	2	0.7	0.05	2.3	42.8	3741	3.08

No. of Cores and Nominal Cross Section	Conductor Type	Nominal Insulation Thickness	Nominal Copper Tape Thickness	Nominal Sheath Thickness	Approx. Overall Diameter	Approx. Weight	Max. D.C. Resistance of Conductor at 20℃
No. × mm²		mm	mm	mm	mm	kg/km	Ω/km
61×0.5	2	0.6	0.05	1.8	23.0	661	36.0
61×0.75	2	0.6	0.05	1.8	24.8	850	24.5
61×1	2	0.6	0.05	1.8	26.5	1036	18.1
61×1.5	2	0.7	0.05	1.9	31.2	1483	12.1
61×2.5	2	0.7	0.05	2.1	35.3	2133	7.41
61×4	2	0.7	0.05	2.2	40.4	3131	4.61
61×6	2	0.7	0.05	2.4	45.7	4355	3.08
