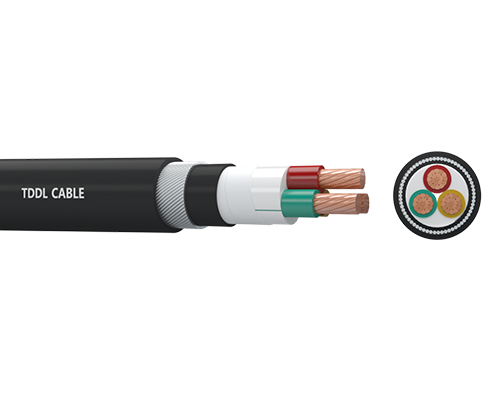

NYRY (VV32)
NYRY (VV32)

NYRY (VV32)

These power cables are used for electricity supply in low voltage installation systems. They are well adapted to underground use in industrial applications with an additional mechanical protection. They are suitable for laying Indoor, tunnel, cable trench, shaft or buried laying. The cable can withstand mechanical external forces and a certain tensile force, it widely used in transformer stations, electric power plants and industrial plants.
Quote Now
Share :
APPLICATION
These power cables are used for electricity supply in low voltage installation systems. They are well adapted to underground use in industrial applications with an additional mechanical protection. They are suitable for laying Indoor, tunnel, cable trench, shaft or buried laying. The cable can withstand mechanical external forces and a certain tensile force, it widely used in transformer stations, electric power plants and industrial plants.

CONSTRUCTION
● Conductor: Copper, class 1 or class 2, solid or stranded, circular or circular compacted conductors
● Insulation: Polyvinyl chloride PVC
● Filler: Non-hygroscopic material
● Binder: Non-hygroscopic material
● Inner sheath: Polyvinyl chloride PVC
● Armour: Steel wire
● Binder :Non-hygroscopic material
● Outer sheath: Polyvinyl chloride PVC

MAIN CHARACTERRISTICS
Good electrical and mechanical properties. Resistance to abrasion, moisture and sunlight. Adequate resistance to oil and abrasion.

SPECIFICATION
IEC 60228 Conductors of Insulate Cables
IEC 60502-1 Power Cables with Extruded Insulation and Their accessories for Rated Voltages from         1kV(Um=1.2kV) up to 30kV(Um=36kV) - Part 1: Cables for Rated Voltages of 1 kV (Um=1.2kV) and       3kV(Um=3.6kV)
High reliability
Super high pressure
Less maintenance
Technical Parameter
No. of Cores and Nominal Cross Section Min. Number of Wires Nominal Insulation Thickness Nominal
Steel Wire Diameter
Nominal
Sheath Thickness
Approx.
Overall Diameter
Approx. weight Max. D.C. Resistance of Conductor
at 20℃
No. × mm2 No. mm mm mm mm kg/km Ω/km
2×1.5 1 0.8 0.8 1.8 13.7 322 12.1
2×2.5 1 0.8 0.8 1.8 14.5 367 7.41
2×4 1 1.0 0.8 1.8 16.3 459 4.61
2×6 1 1.0 1.25 1.8 18.2 652 3.08
2×10 6 1.0 1.25 1.8 20.7 842 1.83
2×16 6 1.0 1.25 1.8 22.3 1025 1.15
2×25 6 1.2 1.6 1.8 26.2 1501 0.727
2×35 6 1.2 1.6 1.8 28.2 1791 0.524
2×50 6 1.4 1.6 1.9 31.8 2231 0.387
2×70 12 1.4 2.0 2.0 36.5 3067 0.268
2×95 15 1.6 2.0 2.2 41.3 3907 0.193
2×120 18 1.6 2.0 2.3 44.3 4562 0.153
2×150 18 1.8 2.5 2.4 49.7 5874 0.124
2×185 30 2.0 2.5 2.6 54.1 6938 0.0991
2×240 34 2.2 2.5 2.7 59.7 8504 0.0754
2×300 34 2.4 2.5 2.9 65.7 10262 0.0601
2×400 53 2.6 2.5 3.2 72.7 12586 0.0470
3×1.5 1 0.8 0.8 1.8 14.2 357 12.1
3×2.5 1 0.8 0.8 1.8 15.1 411 7.41
3×4 1 1.0 0.8 1.8 16.9 528 4.61
3×6 1 1.0 1.25 1.8 18.9 750 3.08
3×10 6 1.0 1.25 1.8 21.7 991 1.83
3×16 6 1.0 1.25 1.8 23.4 1232 1.15
3×25 6 1.2 1.6 1.8 27.5 1801 0.727
3X35 6 1.2 1.6 1.8 29.7 2181 0.524
3×50 6 1.4 1.6 2.0 33.8 2777 0.387
No. of Cores and Nominal Cross Section Min. Number of Wires Nominal Insulation Thickness Nominal
Steel Wire Diameter
Nominal
Sheath Thickness
Approx.
Overall Diameter
Approx. weight Max. D.C. Resistance of Conductor
at 20℃
No. × mm2 No. mm mm mm mm kg/km Ω/km
3×70 12 1.4 2.0 2.1 38.7 3843 0.268
3×95 15 1.6 2.0 2.2 43.7 4947 0.193
3×120 18 1.6 2.0 2.3 46.9 5829 0.153
3×150 18 1.8 2.5 2.5 52.8 7454 0.124
3×185 30 2.0 2.5 2.7 57.5 8924 0.0991
3×240 34 2.2 2.5 2.9 64.1 11150 0.0754
3×300 34 2.4 2.5 3.1 70.2 13441 0.0601
3×400 53 2.6 3.15 3.4 79.4 17564 0.0470
4×1.5 1 0.8 0.8 1.8 15.0 398 12.1
4×2.5 1 0.8 0.8 1.8 15.9 468 7.41
4×4 1 1.0 1.25 1.8 18.9 736 4.61
4×6 1 1.0 1.25 1.8 20.2 869 3.08
4×10 6 1.0 1.25 1.8 23.2 1157 1.83
4×16 6 1.0 1.6 1.8 25.9 1609 1.15
4×25 6 1.2 1.6 1.8 29.7 2162 0.727
4×35 6 1.2 1.6 1.9 32.3 2669 0.524
4×50 6 1.4 2.0 2.1 38.4 3739 0.387
4×70 12 1.4 2.0 2.2 42.2 4723 0.268
4×95 15 1.6 2.5 2.4 49.3 6591 0.193
4×120 18 1.6 2.5 2.5 52.9 7775 0.153
4×150 18 1.8 2.5 2.7 57.9 9280 0.124
4×185 30 2.0 2.5 2.9 63.5 11235 0.0991
4×240 34 2.2 2.5 3.1 70.5 13979 0.0754
4×300 34 2.4 3.15 3.3 78.9 17902 0.0601
4×400 53 2.6 3.15 3.6 87.2 22055 0.0470
5×1.5 1 0.8 0.8 1.8 15.8 449 12.1
5×2.5 1 0.8 0.8 1.8 16.9 530 7.41
5×4 1 1.0 1.25 1.8 20.1 836 4.61
5×6 1 1.0 1.25 1.8 21.5 992 3.08
5×10 6 1.0 1.6 1.8 25.6 1490 1.83
No. of Cores and Nominal Cross Section Min. Number of Wires Nominal Insulation Thickness Nominal
Steel Wire Diameter
Nominal
Sheath Thickness
Approx.
Overall Diameter
Approx. weight Max. D.C. Resistance of Conductor
at 20℃
No. × mm2 No. mm mm mm mm kg/km Ω/km
5×16 6 1.0 1.6 1.8 27.8 1878 1.15
5×25 6 1.2 1.6 1.9 32.3 2563 0.727
5×35 6 1.2 2.0 2.0 36.7 3487 0.524
5×50 6 1.4 2.0 2.2 41.7 4436 0.387
5×70 12 1.4 2.0 2.3 45.9 5649 0.268
5×95 15 1.6 2.5 2.5 53.7 7849 0.193
5×120 18 1.6 2.5 2.7 57.8 9345 0.153
5×150 18 1.8 2.5 2.9 63.8 11208 0.124
5×185 30 2.0 2.5 3.0 69.4 13517 0.0991
5×240 34 2.2 3.15 3.3 79.0 17888 0.0754
5×300 34 2.4 3.15 3.6 86.6 21643 0.0601
5×400 53 2.6 3.15 3.9 95.8 26754 0.0470
3×2.5+1×1.5 1/1 0.8/0.8 0.8 1.8 15.7 450 7.41/12.1
3×4+1×2.5 1/1 1.0/0.8 1.25 1.8 18.4 699 4.61/7.41
3×6+1×4 1/1 1.0/1.0 1.25 1.8 19.9 833 3.08/4.61
3×10+1×6 6/1 1.0/1.0 1.25 1.8 22.5 1092 1.83/3.08
3×16+1×10 6/6 1.0/1.0 1.6 1.8 25.4 1527 1.15/1.83
3×25+1×16 6/6 1.2/1.0 1.6 1.8 28.8 2034 0.727/1.15
3×35+1×16 6/6 1.2/1.0 1.6 1.9 30.8 2403 0.524/1.15
3×50+1×25 6/6 1.4/1.2 2.0 2.0 36.5 3390 0.387/0.727
3×70+1×35 12/6 1.4/1.2 2.0 2.1 40.1 4261 0.268/0.524
3×95+1×50 15/6 1.6/1.4 2.0 2.3 45.5 5514 0.193/0.387
3×120+1×70 18/12 1.6/1.4 2.5 2.5 50.7 7148 0.153/0.268
3×150+1×70 18/12 1.8/1.4 2.5 2.6 54.4 8236 0.124/0.268
3×185+1×95 30/15 2.0/1.6 2.5 2.7 59.5 9994 0.0991/0.193
3×240+1×120 34/18 2.2/1.6 2.5 2.9 66.1 12399 0.0754/0.153
3×300+1×150 34/18 2.4/1.8 2.5 3.1 72.4 14964 0.0601/0.124
3×400+1×185 53/30 2.6/2.0 3.15 3.4 81.7 19493 0.0470/0.0991
3×2.5+2×1.5 1/1 0.8/0.8 0.8 1.8 16.4 496 7.41/12.1
3×4+2×2.5 1/1 1.0/0.8 1.25 1.8 19.2 762 4.61/7.41
No. of Cores and Nominal Cross Section Min. Number of Wires Nominal Insulation Thickness Nominal
Steel Wire Diameter
Nominal
Sheath Thickness
Approx.
Overall Diameter
Approx. weight Max. D.C. Resistance of Conductor
at 20℃
No. × mm2 No. mm mm mm mm kg/km Ω/km
3×6+2×4 1/1 1.0/1.0 1.25 1.8 20.9 931 3.08/4.61
3×10+2×6 6/1 1.0/1.0 1.25 1.8 23.5 1201 1.83/3.08
3×16+2×10 6/6 1.0/1.0 1.6 1.8 26.9 1716 1.15/1.83
3×25+2×16 6/6 1.2/1.0 1.6 1.8 30.4 2280 0.727/1.15
3×35+2×16 6/6 1.2/1.0 1.6 1.9 32.2 2646 0.524/1.15
3×50+2×25 6/6 1.4/1.2 2.0 2.1 38.6 3783 0.387/0.727
3×70+2×35 12/6 1.4/1.2 2.0 2.2 42.3 4751 0.268/0.524
3×95+2×50 15/6 1.6/1.4 2.5 2.4 49.5 6613 0.193/0.387
3×120+2×70 18/12 1.6/1.4 2.5 2.5 53.6 8012 0.153/0.268
3×150+2×70 18/12 1.8/1.4 2.5 2.7 57.0 9114 0.124/0.268
3×185+2×95 30/15 2.0/1.6 2.5 2.9 63.4 11280 0.0991/0.193
3×240+2×120 34/18 2.2/1.6 2.5 3.0 69.5 13842 0.0754/0.153
3×300+2×150 34/18 2.4/1.8 2.5 3.3 76.4 16773 0.0601/0.124
3×400+2×185 53/30 2.6/2.0 3.15 3.6 86.0 21752 0.0470/0.0991
4×2.5+1×1.5 1/1 0.8/0.8 0.8 1.8 16.7 513 7.41/12.1
4×4+1×2.5 1/1 1.0/0.8 1.25 1.8 19.7 799 4.61/7.41
4×6+1×4 1/1 1.0/1.0 1.25 1.8 21.2 966 3.08/4.61
4×10+1×6 6/1 1.0/1.0 1.6 1.8 24.9 1403 1.83/3.08
4×16+1×10 6/6 1.0/1.0 1.6 1.8 27.3 1797 1.15/1.83
4×25+1×16 6/6 1.2/1.0 1.6 1.9 31.4 2420 0.727/1.15
4×35+1×16 6/6 1.2/1.0 1.6 1.9 33.6 2892 0.524/1.15
4×50+1×25 6/6 1.4/1.2 2.0 2.1 40.0 4086 0.387/0.727
4×70+1×35 12/6 1.4/1.2 2.0 2.3 44.2 5208 0.268/0.524
4×95+1×50 15/6 1.6/1.4 2.5 2.5 51.7 7261 0.193/0.387
4×120+1×70 18/12 1.6/1.4 2.5 2.6 55.7 8656 0.153/0.268
4×150+1×70 18/12 1.8/1.4 2.5 2.8 60.6 10202 0.124/0.268
4×185+1×95 30/15 2.0/1.6 2.5 2.9 66.3 12400 0.0991/0.193
4×240+1×120 34/18 2.2/1.6 2.5 3.2 73.5 15408 0.0754/0.153
4×300+1×150 34/18 2.4/1.8 3.15 3.4 82.2 19656 0.0601/0.124
4×400+1×185 53/30 2.6/2.0 3.15 3.7 90.8 24254 0.0470/0.0991



For more product details, please download our PDF files.
