NYRGBY (KVV32)

APPLICATION
This product is applicable to AC rated voltage U0/ U is the control cable for fixed laying in control, monitoring circuit and protection circuit of (U0/U) 0.6/1kV and below.

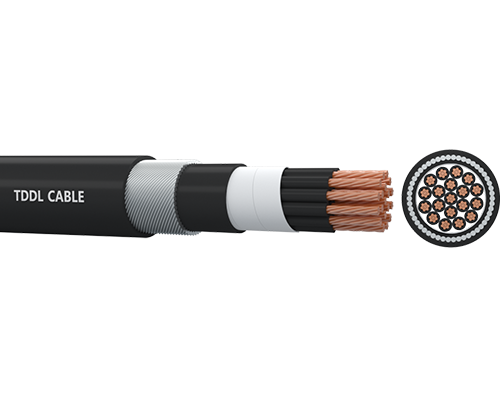

CONSTRUCTION
● Conductor: Conductor: Copper, class 1, 2, or 5, solid，stranded round conductor
● Insulation: Polyvinyl chloride PVC
● Filler:Non-hygroscopic material
● Binder:Non-hygroscopic material
● Inner sheath: Polyvinyl chloride PVC
● Armour: Galvanized steel wire
● Binder: Non-hygroscopic material
● Outer sheath: Polyvinyl chloride PVC

MAIN CHARACTERISTICS
Good electrical and mechanical properties. Resistance to abrasion, moisture and sunlight. Adequate resistance to oil and abrasion.

SPECIFICATION
IEC 60228 Conductors of Insulate Cables
IEC 60502-1 Power Cables with Extruded Insulation and Their Accessories for Rated Voltages from 1kV(Um=1.2kV) up to 30kV(Um=36kV) - Part 1: Cables for Rated Voltages of 1kV (Um=1.2kV) and 3kV(Um=3.6kV)

High reliability

Super high pressure

Less maintenance

Technical Parameter

IEC 60502-1

No. of Cores and Nominal Cross Section	Conductor Type	Nominal Insulation Thickness	Nominal Copper Tape Thickness	Nominal Sheath Thickness	Approx. Overall Diameter	Approx. Weight	Max. D.C. Resistance of Conductor at 20℃
No. × mm²		mm	mm	mm	mm	kg/km	Ω/km
2×0.5	2	0.6	0.8	1.8	12.0	242	36.0
2×0.75	2	0.6	0.8	1.8	12.4	267	24.5
2×1	2	0.6	0.8	1.8	12.8	281	18.1
2×1.5	2	0.8	0.8	1.8	14.2	343	12.1
2×2.5	2	0.8	0.8	1.8	15.0	390	7.41
2×4	2	1.0	1.25	1.8	17.8	600	4.61
2×6	2	1.0	1.25	1.8	18.9	684	3.08
2×10	2	1.0	1.25	1.8	20.7	851	1.83
3×0.5	2	0.6	0.8	1.8	12.3	262	36.0
3×0.75	2	0.6	0.8	1.8	12.8	293	24.5
3×1	2	0.6	0.8	1.8	13.2	315	18.1
3×1.5	2	0.8	0.8	1.8	14.7	377	12.1
3×2.5	2	0.8	0.8	1.8	15.6	436	7.41
3×4	2	1.0	1.25	1.8	18.5	679	4.61
3×6	2	1.0	1.25	1.8	19.7	791	3.08
3×10	2	1.0	1.25	1.8	21.6	1008	1.83
4×0.5	2	0.6	0.8	1.8	12.9	285	36.0
4×0.75	2	0.6	0.8	1.8	13.4	308	24.5
4×1	2	0.6	0.8	1.8	13.8	344	18.1
4×1.5	2	0.8	0.8	1.8	15.5	434	12.1
4×2.5	2	0.8	1.25	1.8	17.4	612	7.41
4×4	2	1.0	1.25	1.8	19.7	787	4.61
4×6	2	1.0	1.25	1.8	21.0	925	3.08
4×10	2	1.0	1.6	1.8	23.9	1332	1.83
5×0.5	2	0.6	0.8	1.8	13.5	310	36.0
5×0.75	2	0.6	0.8	1.8	14.0	354	24.5
5×1	2	0.6	0.8	1.8	14.5	383	18.1
5×1.5	2	0.8	1.25	1.8	17.3	591	12.1
5×2.5	2	0.8	1.25	1.8	18.4	692	7.41
5×4	2	1.0	1.25	1.8	21.0	892	4.61
5×6	2	1.0	1.6	1.8	23.1	1170	3.08
5×10	2	1.0	1.6	1.8	25.6	1540	1.83
6×0.5	2	0.6	0.8	1.8	14.1	336	36.0
6×0.75	2	0.6	0.8	1.8	14.7	374	24.5

No. of Cores and Nominal Cross Section	Conductor Type	Nominal Insulation Thickness	Nominal Copper Tape Thickness	Nominal Sheath Thickness	Approx. Overall Diameter	Approx. Weight	Max. D.C. Resistance of Conductor at 20℃
No. × mm²		mm	mm	mm	mm	kg/km	Ω/km
6×1	2	0.6	0.8	1.8	15.3	408	18.1
6×1.5	2	0.8	1.25	1.8	18.3	635	12.1
6×2.5	2	0.8	1.25	1.8	19.5	743	7.41
6×4	2	1.0	1.6	1.8	23.1	1102	4.61
6×6	2	1.0	1.6	1.8	24.7	1300	3.08
6×10	2	1.0	1.6	1.8	27.4	1668	1.83
7×0.5	2	0.6	0.8	1.8	14.1	342	36.0
7×0.75	2	0.6	0.8	1.8	14.7	384	24.5
7×1	2	0.6	0.8	1.8	15.3	420	18.1
7×1.5	2	0.8	1.25	1.8	18.3	655	12.1
7×2.5	2	0.8	1.25	1.8	19.5	773	7.41
7×4	2	1.0	1.6	1.8	23.1	1151	4.61
7×6	2	1.0	1.6	1.8	24.7	1361	3.08
7×10	2	1.0	1.6	1.8	27.4	1762	1.83
8×0.5	2	0.6	0.8	1.8	15.0	382	36.0
8×0.75	2	0.6	1.25	1.8	16.7	527	24.5
8×1	2	0.6	1.25	1.8	17.3	580	18.1
8×1.5	2	0.8	1.25	1.8	19.7	741	12.1
8×2.5	2	0.8	1.25	1.8	21.2	873	7.41
8×4	2	1.0	1.6	1.8	25.1	1304	4.61
8×6	2	1.0	1.6	1.8	27.0	1537	3.08
8×10	2	1.0	1.6	1.9	30.3	2020	1.83
9×0.5	2	0.6	1.25	1.8	16.7	515	36.0
9×0.75	2	0.6	1.25	1.8	17.5	575	24.5
9×1	2	0.6	1.25	1.8	18.2	631	18.1
9×1.5	2	0.8	1.25	1.8	20.8	814	12.1
9×2.5	2	0.8	1.6	1.8	23.1	1089	7.41
9×4	2	1.0	1.6	1.8	26.7	1435	4.61
9×6	2	1.0	1.6	1.8	28.7	1713	3.08
9×10	2	1.0	1.6	2.0	32.6	2262	1.83
10×0.5	2	0.6	1.25	1.8	17.1	549	36.0
10×0.75	2	0.6	1.25	1.8	17.9	610	24.5
10×1	2	0.6	1.25	1.8	18.7	660	18.1
10×1.5	2	0.8	1.25	1.8	21.5	853	12.1
10×2.5	2	0.8	1.6	1.8	23.8	1145	7.41

No. of Cores and Nominal Cross Section	Conductor Type	Nominal Insulation Thickness	Nominal Copper Tape Thickness	Nominal Sheath Thickness	Approx. Overall Diameter	Approx. Weight	Max. D.C. Resistance of Conductor at 20℃
No. × mm²		mm	mm	mm	mm	kg/km	Ω/km
10×4	2	1.0	1.6	1.8	27.6	1513	4.61
10×6	2	1.0	1.6	1.9	30.0	1840	3.08
10×10	2	1.0	2.0	2.0	34.6	2630	1.83
12×0.5	2	0.6	1.25	1.8	17.4	566	36.0
12×0.75	2	0.6	1.25	1.8	18.3	634	24.5
12×1	2	0.6	1.25	1.8	19.1	700	18.1
12×1.5	2	0.8	1.6	1.8	22.7	1034	12.1
12×2.5	2	0.8	1.6	1.8	24.4	1229	7.41
12×4	2	1.0	1.6	1.8	28.3	1654	4.61
12×6	2	1.0	1.6	1.9	30.8	2001	3.08
14×0.5	2	0.6	1.25	1.8	18.0	611	36.0
14×0.75	2	0.6	1.25	1.8	18.9	685	24.5
14×1	2	0.6	1.25	1.8	19.7	757	18.1
14×1.5	2	0.8	1.6	1.8	23.5	1124	12.1
14×2.5	2	0.8	1.6	1.8	25.3	1341	7.41
14×4	2	1.0	1.6	1.9	29.7	1822	4.61
14×6	2	1.0	1.6	1.9	32.0	2198	3.08
16×0.5	2	0.6	1.25	1.8	18.6	649	36.0
16×0.75	2	0.6	1.25	1.8	19.6	731	24.5
16×1	2	0.6	1.25	1.8	20.4	819	18.1
16×1.5	2	0.8	1.6	1.8	24.4	1202	12.1
16×2.5	2	0.8	1.6	1.8	26.4	1458	7.41
16×4	2	1.0	1.6	1.9	31.0	1985	4.61
16×6	2	1.0	2.0	2.0	34.5	2654	3.08
19×0.5	2	0.6	1.25	1.8	19.2	702	36.0
19×0.75	2	0.6	1.25	1.8	20.3	793	24.5
19×1	2	0.6	1.25	1.8	21.2	881	18.1
19×1.5	2	0.8	1.6	1.8	25.4	1316	12.1
19×2.5	2	0.8	1.6	1.8	27.5	1602	7.41
19×4	2	1.0	1.6	2.0	32.6	2223	4.61
19×6	2	1.0	2.0	2.1	36.6	2994	3.08
20×0.5	2	0.6	1.25	1.8	19.9	730	36.0
20×0.75	2	0.6	1.25	1.8	21.0	835	24.5
20×1	2	0.6	1.25	1.8	22.0	927	18.1
20×1.5	2	0.8	1.6	1.8	26.4	1386	12.1

No. of Cores and Nominal Cross Section	Conductor Type	Nominal Insulation Thickness	Nominal Copper Tape Thickness	Nominal Sheath Thickness	Approx. Overall Diameter	Approx. Weight	Max. D.C. Resistance of Conductor at 20℃
No. × mm²		mm	mm	mm	mm	kg/km	Ω/km
20×2.5	2	0.8	1.6	1.8	28.6	1685	7.41
20×4	2	1.0	2.0	2.0	34.9	2577	4.61
20×6	2	1.0	2.0	2.1	38.6	3204	3.08
21×0.5	2	0.6	1.25	1.8	19.9	739	36.0
21×0.75	2	0.6	1.25	1.8	21.0	847	24.5
21×1	2	0.6	1.25	1.8	22.0	942	18.1
21×1.5	2	0.8	1.6	1.8	26.4	1409	12.1
21×2.5	2	0.8	1.6	1.8	28.6	1718	7.41
21×4	2	1.0	2.0	2.0	34.9	2630	4.61
21×6	2	1.0	2.0	2.1	38.6	3278	3.08
22×0.5	2	0.6	1.25	1.8	20.6	777	36.0
22×0.75	2	0.6	1.6	1.8	22.5	1012	24.5
22×1	2	0.6	1.6	1.8	23.5	1124	18.1
22×1.5	2	0.8	1.6	1.8	27.5	1480	12.1
22×2.5	2	0.8	1.6	1.9	30.1	1830	7.41
22×4	2	1.0	2.0	2.1	37.3	2842	4.61
22×6	2	1.0	2.0	2.2	40.6	3473	3.08
24×0.5	2	0.6	1.25	1.8	21.3	829	36.0
24×0.75	2	0.6	1.6	1.8	23.3	1067	24.5
24×1	2	0.6	1.6	1.8	24.3	1186	18.1
24×1.5	2	0.8	1.6	1.8	28.5	1578	12.1
24×2.5	2	0.8	1.6	1.9	31.3	1954	7.41
24×4	2	1.0	2.0	2.2	39.0	3076	4.61
24×6	2	1.0	2.0	2.3	42.4	3731	3.08
27×0.5	2	0.6	1.6	1.8	22.3	972	36.0
27×0.75	2	0.6	1.6	1.8	23.6	1119	24.5
27×1	2	0.6	1.6	1.8	24.7	1246	18.1
27×1.5	2	0.8	1.6	1.9	29.2	1679	12.1
27×2.5	2	0.8	1.6	1.9	31.8	2071	7.41
27×4	2	1.0	2.0	2.2	39.7	3265	4.61
27×6	2	1.0	2.0	2.3	43.2	4002	3.08
30×0.5	2	0.6	1.6	1.8	22.9	1022	36.0
30×0.75	2	0.6	1.6	1.8	24.2	1179	24.5
30×1	2	0.6	1.6	1.8	25.4	1316	18.1
30×1.5	2	0.8	1.6	1.9	30.0	1793	12.1

No. of Cores and Nominal Cross Section	Conductor Type	Nominal Insulation Thickness	Nominal Copper Tape Thickness	Nominal Sheath Thickness	Approx. Overall Diameter	Approx. Weight	Max. D.C. Resistance of Conductor at 20℃
No. × mm²		mm	mm	mm	mm	kg/km	Ω/km
30×2.5	2	0.8	1.6	2.0	32.9	2232	7.41
30×4	2	1.0	2.0	2.2	40.9	3471	4.61
30×6	2	1.0	2.0	2.3	44.5	4296	3.08
33×0.5	2	0.6	1.6	1.8	23.5	1092	36.0
33×0.75	2	0.6	1.6	1.8	24.9	1242	24.5
33×1	2	0.6	1.6	1.8	26.1	1405	18.1
33×1.5	2	0.8	1.6	1.9	31.0	1895	12.1
33×2.5	2	0.8	2.0	2.0	34.8	2613	7.41
33×4	2	1.0	2.0	2.3	42.4	3728	4.61
33×6	2	1.0	2.5	2.4	47.2	5021	3.08
37×0.5	2	0.6	1.6	1.8	24.1	1149	36.0
37×0.75	2	0.6	1.6	1.8	25.6	1329	24.5
37×1	2	0.6	1.6	1.8	26.8	1488	18.1
37×1.5	2	0.8	1.6	1.9	31.9	2032	12.1
37×2.5	2	0.8	2.0	2.1	36.4	2836	7.41
37×4	2	1.0	2.0	2.3	43.8	4012	4.61
37×6	2	1.0	2.5	2.5	48.9	5398	3.08
44×0.5	2	0.6	1.6	1.8	26.2	1310	36.0
44×0.75	2	0.6	1.6	1.8	27.9	1513	24.5
44×1	2	0.6	1.6	1.9	29.5	1725	18.1
44×1.5	2	0.8	2.0	2.1	36.6	2632	12.1
44×2.5	2	0.8	2.0	2.2	40.6	3339	7.41
44×4	2	1.0	2.5	2.5	50.1	5179	4.61
44×6	2	1.0	2.5	2.7	54.8	6384	3.08
48×0.5	2	0.6	1.6	1.8	26.5	1344	36.0
48×0.75	2	0.6	1.6	1.8	28.2	1576	24.5
48×1	2	0.6	1.6	1.9	29.9	1784	18.1
48×1.5	2	0.8	2.0	2.1	37.5	2812	12.1
48×2.5	2	0.8	2.0	2.2	41.1	3501	7.41
48×4	2	1.0	2.5	2.5	50.8	5437	4.61
48×6	2	1.0	2.5	2.7	55.6	6720	3.08
52×0.5	2	0.6	1.6	1.8	27.1	1403	36.0
52×0.75	2	0.6	1.6	1.9	29.0	1661	24.5
52×1	2	0.6	1.6	1.9	30.5	1885	18.1
52×1.5	2	0.8	2.0	2.1	38.3	2944	12.1
52×2.5	2	0.8	2.0	2.3	42.3	3694	7.41

No. of Cores and Nominal Cross Section	Conductor Type	Nominal Insulation Thickness	Nominal Copper Tape Thickness	Nominal Sheath Thickness	Approx. Overall Diameter	Approx. Weight	Max. D.C. Resistance of Conductor at 20℃
No. × mm²		mm	mm	mm	mm	kg/km	Ω/km
52×4	2	1.0	2.5	2.6	52.2	5737	4.61
52×6	2	1.0	2.5	2.7	56.9	7119	3.08
61×0.5	2	0.6	1.6	1.9	28.5	1561	36.0
61×0.75	2	0.6	1.6	1.9	30.4	1819	24.5
61×1	2	0.6	1.6	1.9	32.0	2071	18.1
61×1.5	2	0.8	2.0	2.2	40.4	3279	12.1
61×2.5	2	0.8	2.0	2.3	44.4	4109	7.41
61×4	2	1.0	2.5	2.7	55.1	6414	4.61
61×6	2	1.0	2.5	2.8	60.1	7984	3.08

For more product details, please download our PDF files.
