N2XRGBY (KYJV32)

APPLICATION
This product is applicable to AC rated voltage U0/U is the control cable for fixed laying in control, monitoring circuit and protection circuit of (U0/U) 0.6/1kV and below.

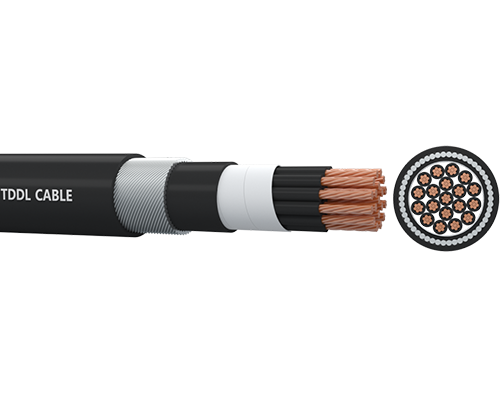

CONSTRUCTION
● Conductor: Copper, class 1, 2, solid, stranded round conductor
● Insulation: Cross-linked polyethylene XLPE
● Filler: Non-hygroscopic material
● Binder: Non-hygroscopic material
● Inner sheath: Polyvinyl chloride PVC
● Armour: Galvanized steel tape
● Outer sheath: Polyvinyl chloride PVC

MAIN CHARACTERISTICS
Good electrical and mechanical properties. Resistance to abrasion, moisture and sunlight. Adequate resistance to oil and abrasion.

SPECIFICATION
IEC 60228 Conductors of Insulate Cables
IEC 60502-1 Power Cables with Extruded Insulation and Their Accessories for Rated Voltages from 1kV(Um=1.2kV) up to 30kV(Um=36kV) - Part 1: Cables for Rated Voltages of 1kV (Um=1.2kV) and 3kV(Um=3.6kV)

High reliability

Super high pressure

Less maintenance

Technical Parameter

IEC 60502-1

No. of Cores and Nominal Cross Section	Conductor Type	Nominal Insulation Thickness	Nominal Copper Tape Thickness	Nominal Sheath Thickness	Approx. Overall Diameter	Approx. Weight	Max. D.C. Resistance of Conductor at 20℃
No. × mm²		mm	mm	mm	mm	kg/km	Ω/km
2×0.5	2	0.6	0.8	1.8	12.0	239	36.0
2×0.75	2	0.6	0.8	1.8	12.4	263	24.5
2×1	2	0.6	0.8	1.8	12.8	278	18.1
2×1.5	2	0.7	0.8	1.8	13.8	325	12.1
2×2.5	2	0.7	0.8	1.8	14.6	367	7.41
2×4	2	0.7	0.8	1.8	15.7	432	4.61
2×6	2	0.7	1.25	1.8	17.7	616	3.08
2×10	2	0.7	1.25	1.8	19.5	779	1.83
3×0.5	2	0.6	0.8	1.8	12.3	257	36.0
3×0.75	2	0.6	0.8	1.8	12.8	288	24.5
3×1	2	0.6	0.8	1.8	13.2	309	18.1
3×1.5	2	0.7	0.8	1.8	14.3	355	12.1
3×2.5	2	0.7	0.8	1.8	15.2	408	7.41
3×4	2	0.7	1.25	1.8	17.2	603	4.61
3×6	2	0.7	1.25	1.8	18.4	710	3.08
3×10	2	0.7	1.25	1.8	20.3	911	1.83
4×0.5	2	0.6	0.8	1.8	12.9	279	36.0
4×0.75	2	0.6	0.8	1.8	13.4	301	24.5
4×1	2	0.6	0.8	1.8	13.8	337	18.1
4×1.5	2	0.7	0.8	1.8	15.0	404	12.1
4×2.5	2	0.7	1.25	1.8	17.0	576	7.41
4×4	2	0.7	1.25	1.8	18.3	689	4.61
4×6	2	0.7	1.25	1.8	19.6	832	3.08
4×10	2	0.7	1.25	1.8	21.7	1103	1.83
5×0.5	2	0.6	0.8	1.8	13.5	303	36.0
5×0.75	2	0.6	0.8	1.8	14.0	345	24.5
5×1	2	0.6	0.8	1.8	14.5	374	18.1
5×1.5	2	0.7	0.8	1.8	15.9	444	12.1
5×2.5	2	0.7	1.25	1.8	17.9	641	7.41
5×4	2	0.7	1.25	1.8	19.4	782	4.61
5×6	2	0.7	1.25	1.8	20.8	934	3.08
5×10	2	0.7	1.6	1.8	24.0	1403	1.83
6×0.5	2	0.6	0.8	1.8	14.1	327	36.0
6×0.75	2	0.6	0.8	1.8	14.7	364	24.5

No. of Cores and Nominal Cross Section	Conductor Type	Nominal Insulation Thickness	Nominal Copper Tape Thickness	Nominal Sheath Thickness	Approx. Overall Diameter	Approx. Weight	Max. D.C. Resistance of Conductor at 20℃
No. × mm²		mm	mm	mm	mm	kg/km	Ω/km
6×1	2	0.6	0.8	1.8	15.3	397	18.1
6×1.5	2	0.7	1.25	1.8	17.7	593	12.1
6×2.5	2	0.7	1.25	1.8	18.9	697	7.41
6×4	2	0.7	1.25	1.8	20.6	850	4.61
6×6	2	0.7	1.6	1.8	22.9	1145	3.08
6×10	2	0.7	1.6	1.8	25.6	1514	1.83
7×0.5	2	0.6	0.8	1.8	14.1	332	36.0
7×0.75	2	0.6	0.8	1.8	14.7	372	24.5
7×1	2	0.6	0.8	1.8	15.3	407	18.1
7×1.5	2	0.7	1.25	1.8	17.7	609	12.1
7×2.5	2	0.7	1.25	1.8	18.9	722	7.41
7×4	2	0.7	1.25	1.8	20.6	890	4.61
7×6	2	0.7	1.6	1.8	22.9	1194	3.08
7×10	2	0.7	1.6	1.8	25.6	1595	1.83
8×0.5	2	0.6	0.8	1.8	15.0	371	36.0
8×0.75	2	0.6	1.25	1.8	16.7	514	24.5
8×1	2	0.6	1.25	1.8	17.3	565	18.1
8×1.5	2	0.7	1.25	1.8	19.0	680	12.1
8×2.5	2	0.7	1.25	1.8	20.5	816	7.41
8×4	2	0.7	1.6	1.8	23.0	1134	4.61
8×6	2	0.7	1.6	1.8	24.9	1355	3.08
8×10	2	0.7	1.6	1.8	28.0	1807	1.83
9×0.5	2	0.6	1.25	1.8	16.7	502	36.0
9×0.75	2	0.6	1.25	1.8	17.5	560	24.5
9×1	2	0.6	1.25	1.8	18.2	614	18.1
9×1.5	2	0.7	1.25	1.8	20.1	747	12.1
9×2.5	2	0.7	1.25	1.8	21.7	897	7.41
9×4	2	0.7	1.6	1.8	24.4	1235	4.61
9×6	2	0.7	1.6	1.8	26.5	1501	3.08
9×10	2	0.7	1.6	1.9	30.1	2031	1.83
10×0.5	2	0.6	1.25	1.8	17.1	535	36.0
10×0.75	2	0.6	1.25	1.8	17.9	594	24.5
10×1	2	0.6	1.25	1.8	18.7	641	18.1
10×1.5	2	0.7	1.25	1.8	20.7	782	12.1
10×2.5	2	0.7	1.6	1.8	23.0	1070	7.41
10×4	2	0.7	1.6	1.8	25.2	1318	4.61

No. of Cores and Nominal Cross Section	Conductor Type	Nominal Insulation Thickness	Nominal Copper Tape Thickness	Nominal Sheath Thickness	Approx. Overall Diameter	Approx. Weight	Max. D.C. Resistance of Conductor at 20℃
No. × mm²		mm	mm	mm	mm	kg/km	Ω/km
10×6	2	0.7	1.6	1.8	27.4	1602	3.08
10×10	2	0.7	1.6	1.9	31.2	2164	1.83
12×0.5	2	0.6	1.25	1.8	17.4	549	36.0
12×0.75	2	0.6	1.25	1.8	18.3	614	24.5
12×1	2	0.6	1.25	1.8	19.1	678	18.1
12×1.5	2	0.7	1.25	1.8	21.1	832	12.1
12×2.5	2	0.7	1.6	1.8	23.6	1145	7.41
12×4	2	0.7	1.6	1.8	25.8	1422	4.61
12×6	2	0.7	1.6	1.8	28.1	1739	3.08
14×0.5	2	0.6	1.25	1.8	18.0	591	36.0
14×0.75	2	0.6	1.25	1.8	18.9	662	24.5
14×1	2	0.6	1.25	1.8	19.7	732	18.1
14×1.5	2	0.7	1.25	1.8	21.9	900	12.1
14×2.5	2	0.7	1.6	1.8	24.4	1230	7.41
14×4	2	0.7	1.6	1.8	26.8	1556	4.61
14×6	2	0.7	1.6	1.9	29.4	1925	3.08
16×0.5	2	0.6	1.25	1.8	18.6	626	36.0
16×0.75	2	0.6	1.25	1.8	19.6	704	24.5
16×1	2	0.6	1.25	1.8	20.4	790	18.1
16×1.5	2	0.7	1.6	1.8	23.5	1109	12.1
16×2.5	2	0.7	1.6	1.8	25.4	1337	7.41
16×4	2	0.7	1.6	1.8	28.0	1697	4.61
16×6	2	0.7	1.6	1.9	30.7	2122	3.08
19×0.5	2	0.6	1.25	1.8	19.2	674	36.0
19×0.75	2	0.6	1.25	1.8	20.3	761	24.5
19×1	2	0.6	1.25	1.8	21.2	846	18.1
19×1.5	2	0.7	1.6	1.8	24.4	1193	12.1
19×2.5	2	0.7	1.6	1.8	26.5	1467	7.41
19×4	2	0.7	1.6	1.9	29.4	1886	4.61
19×6	2	0.7	1.6	1.9	32.1	2356	3.08
20×0.5	2	0.6	1.25	1.8	19.9	701	36.0
20×0.75	2	0.6	1.25	1.8	21.0	802	24.5
20×1	2	0.6	1.25	1.8	22.0	890	18.1
20×1.5	2	0.7	1.6	1.8	25.3	1258	12.1
20×2.5	2	0.7	1.6	1.8	27.6	1543	7.41
20×4	2	0.7	1.6	1.9	30.7	1997	4.61

No. of Cores and Nominal Cross Section	Conductor Type	Nominal Insulation Thickness	Nominal Copper Tape Thickness	Nominal Sheath Thickness	Approx. Overall Diameter	Approx. Weight	Max. D.C. Resistance of Conductor at 20℃
No. × mm²		mm	mm	mm	mm	kg/km	Ω/km
20×6	2	0.7	2.0	2.0	34.5	2723	3.08
21×0.5	2	0.6	1.25	1.8	19.9	708	36.0
21×0.75	2	0.6	1.25	1.8	21.0	812	24.5
21×1	2	0.6	1.25	1.8	22.0	903	18.1
21×1.5	2	0.7	1.6	1.8	25.3	1277	12.1
21×2.5	2	0.7	1.6	1.8	27.6	1572	7.41
21×4	2	0.7	1.6	1.9	30.7	2041	4.61
21×6	2	0.7	2.0	2.0	34.5	2785	3.08
22×0.5	2	0.6	1.25	1.8	20.6	745	36.0
22×0.75	2	0.6	1.6	1.8	22.5	975	24.5
22×1	2	0.6	1.6	1.8	23.5	1083	18.1
22×1.5	2	0.7	1.6	1.8	26.4	1343	12.1
22×2.5	2	0.7	1.6	1.8	28.7	1665	7.41
22×4	2	0.7	1.6	1.9	32.0	2136	4.61
22×6	2	0.7	2.0	2.1	36.6	2972	3.08
24×0.5	2	0.6	1.25	1.8	21.3	794	36.0
24×0.75	2	0.6	1.6	1.8	23.3	1027	24.5
24×1	2	0.6	1.6	1.8	24.3	1142	18.1
24×1.5	2	0.7	1.6	1.8	27.3	1432	12.1
24×2.5	2	0.7	1.6	1.9	30.1	1791	7.41
24×4	2	0.7	1.6	2.0	33.5	2315	4.61
24×6	2	0.7	2.0	2.1	38.4	3243	3.08
27×0.5	2	0.6	1.6	1.8	22.3	932	36.0
27×0.75	2	0.6	1.6	1.8	23.6	1074	24.5
27×1	2	0.6	1.6	1.8	24.7	1197	18.1
27×1.5	2	0.7	1.6	1.8	27.8	1508	12.1
27×2.5	2	0.7	1.6	1.9	30.6	1894	7.41
27×4	2	0.7	2.0	2.0	34.9	2691	4.61
27×6	2	0.7	2.0	2.2	39.3	3471	3.08
30×0.5	2	0.6	1.6	1.8	22.9	978	36.0
30×0.75	2	0.6	1.6	1.8	24.2	1129	24.5
30×1	2	0.6	1.6	1.8	25.4	1261	18.1
30×1.5	2	0.7	1.6	1.8	28.6	1592	12.1
30×2.5	2	0.7	1.6	1.9	31.5	2009	7.41
30×4	2	0.7	2.0	2.1	36.4	2915	4.61
30×6	2	0.7	2.0	2.2	40.5	3728	3.08

No. of Cores and Nominal Cross Section	Conductor Type	Nominal Insulation Thickness	Nominal Copper Tape Thickness	Nominal Sheath Thickness	Approx. Overall Diameter	Approx. Weight	Max. D.C. Resistance of Conductor at 20℃
No. × mm²		mm	mm	mm	mm	kg/km	Ω/km
33×0.5	2	0.6	1.6	1.8	23.5	1043	36.0
33×0.75	2	0.6	1.6	1.8	24.9	1187	24.5
33×1	2	0.6	1.6	1.8	26.1	1344	18.1
33×1.5	2	0.7	1.6	1.9	29.6	1710	12.1
33×2.5	2	0.7	1.6	2.0	32.6	2160	7.41
33×4	2	0.7	2.0	2.1	38.0	3154	4.61
33×6	2	0.7	2.0	2.2	41.8	3993	3.08
37×0.5	2	0.6	1.6	1.8	24.1	1095	36.0
37×0.75	2	0.6	1.6	1.8	25.6	1267	24.5
37×1	2	0.6	1.6	1.8	26.8	1420	18.1
37×1.5	2	0.7	1.6	1.9	30.5	1830	12.1
37×2.5	2	0.7	2.0	2.0	34.5	2539	7.41
37×4	2	0.7	2.0	2.2	39.4	3412	4.61
37×6	2	0.7	2.0	2.3	43.3	4330	3.08
44×0.5	2	0.6	1.6	1.8	26.2	1246	36.0
44×0.75	2	0.6	1.6	1.8	27.9	1440	24.5
44×1	2	0.6	1.6	1.9	29.5	1644	18.1
44×1.5	2	0.7	2.0	2.0	34.5	2328	12.1
44×2.5	2	0.7	2.0	2.2	39.0	3029	7.41
44×4	2	0.7	2.0	2.3	43.5	3966	4.61
44×6	2	0.7	2.5	2.5	49.2	5485	3.08
48×0.5	2	0.6	1.6	1.8	26.5	1274	36.0
48×0.75	2	0.6	1.6	1.8	28.2	1496	24.5
48×1	2	0.6	1.6	1.9	29.9	1696	18.1
48×1.5	2	0.7	2.0	2.0	35.0	2432	12.1
48×2.5	2	0.7	2.0	2.2	39.5	3171	7.41
48×4	2	0.7	2.0	2.3	44.1	4169	4.61
48×6	2	0.7	2.5	2.5	50.3	5810	3.08
52×0.5	2	0.6	1.6	1.8	27.1	1328	36.0
52×0.75	2	0.6	1.6	1.9	29.0	1574	24.5
52×1	2	0.6	1.6	1.9	30.5	1789	18.1
52×1.5	2	0.7	2.0	2.1	36.2	2598	12.1
52×2.5	2	0.7	2.0	2.2	40.4	3352	7.41
52×4	2	0.7	2.0	2.4	45.3	4433	4.61
52×6	2	0.7	2.5	2.5	51.5	6161	3.08
61×0.5	2	0.6	1.6	1.9	28.5	1472	36.0

No. of Cores and Nominal Cross Section	Conductor Type	Nominal Insulation Thickness	Nominal Copper Tape Thickness	Nominal Sheath Thickness	Approx. Overall Diameter	Approx. Weight	Max. D.C. Resistance of Conductor at 20℃
No. × mm²		mm	mm	mm	mm	kg/km	Ω/km
61×0.75	2	0.6	1.6	1.9	30.4	1717	24.5
61×1	2	0.6	1.6	1.9	32.0	1959	18.1
61×1.5	2	0.7	2.0	2.1	38.4	2909	12.1
61×2.5	2	0.7	2.0	2.3	42.6	3739	7.41
61×4	2	0.7	2.5	2.5	48.9	5360	4.61
61×6	2	0.7	2.5	2.6	54.3	6916	3.08
